Complies with IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, and IEEE 802.3az standards
Supports IEEE 802.3x flow control for full-duplex mode and backpressure for half-duplex
Supports MAC address auto-learning
8 x 10/100/1000Mbps Auto-Negotiation RJ45 ports, supporting Auto-MDI/MDIX
UTP port supports automatic negotiation, adjusting transmission mode and rate automatically
Operates in store-and-forward mode
LED indicators for monitoring power and link/activity
External power adapter supply, with an exquisite design, making it easy to use

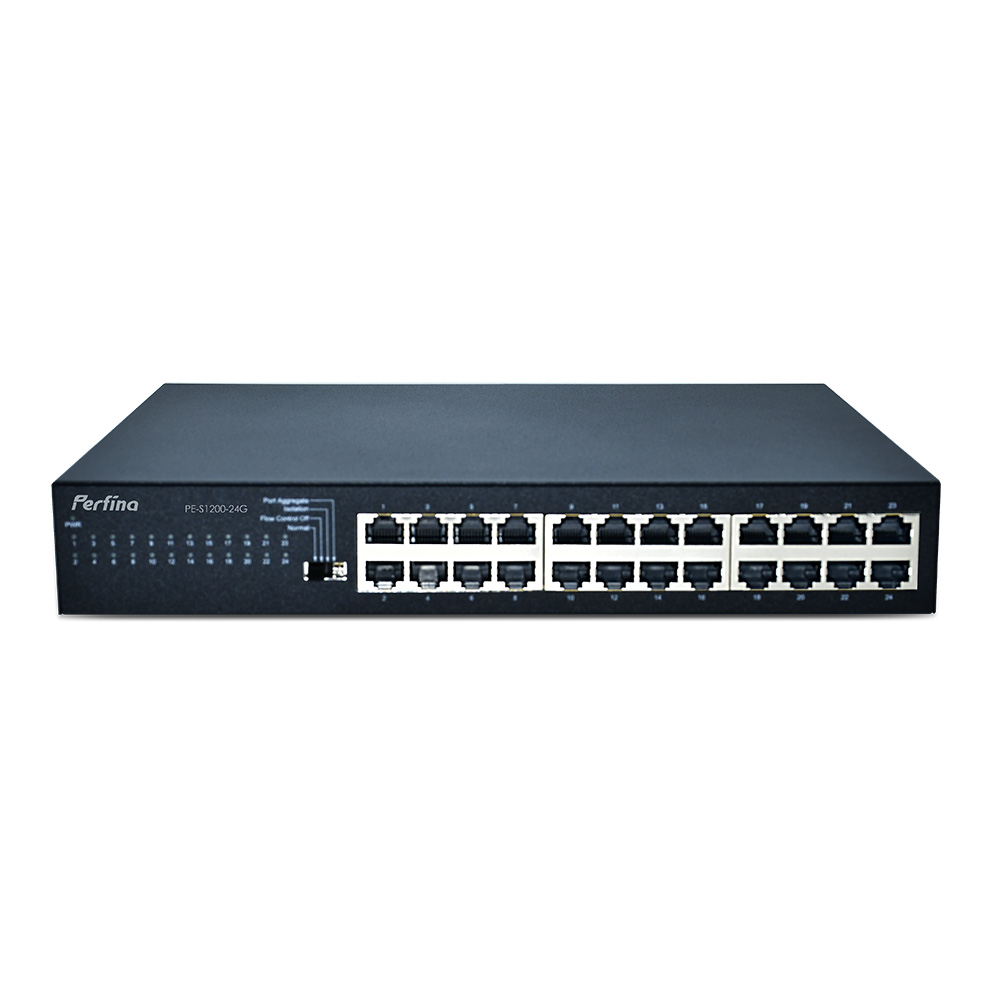

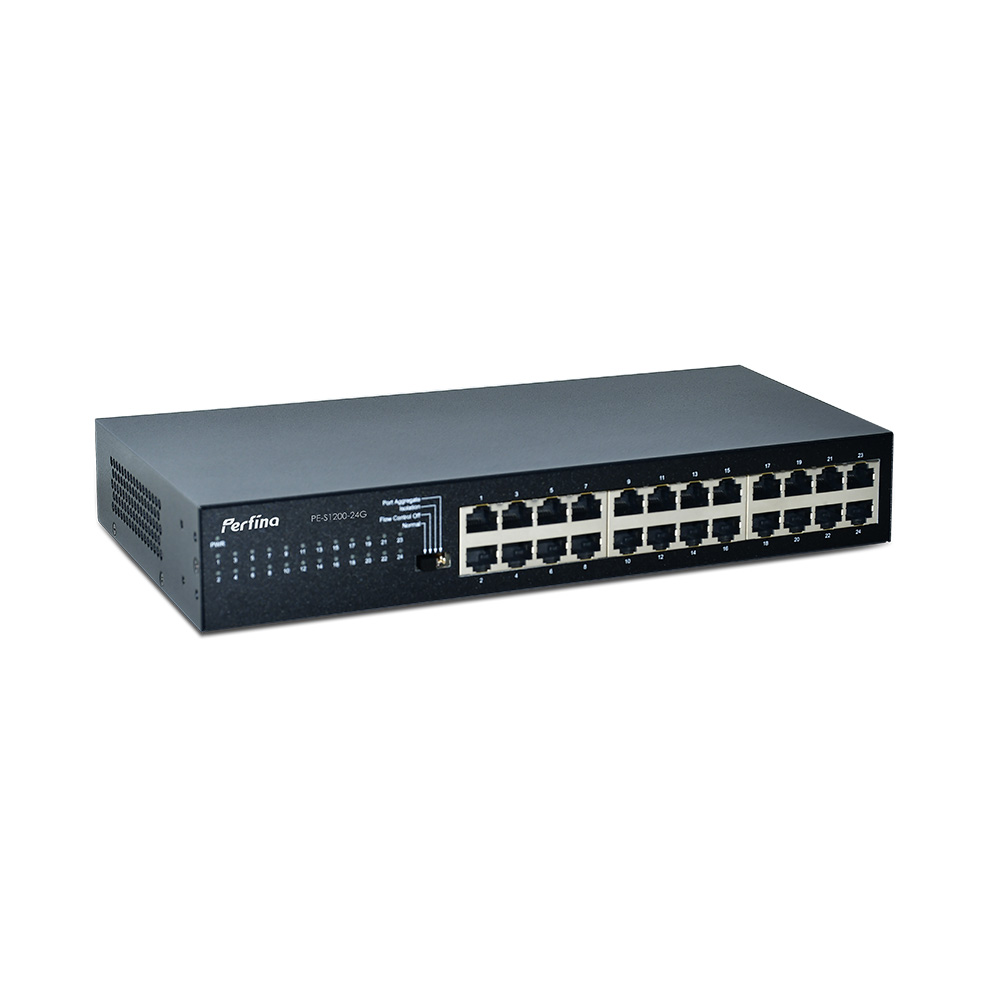

The PE-S1200-24G 24 Port 10/100/1000Mbps gigabit Ethernet Switch provides the seamless network connection. This device integrates 1000Mbps Gigabit Ethernet, 100Mbps Fast Ethernet and 10Mbps Ethernet network capabilities in a highly flexible package. Based on Gigabit Ethernet Technology,
It is essential to helping solve network bottlenecks that frequently develop as more advanced computer users and newer applications continue to demand greater network resources.Support normal working mode,flow control off mode,port isolation (VLAN) mode and port aggregation mode, you can choose the working mode through the toggle swtich. Support IEEE802.3az energy efficient Ethernet (EEE), reduce power consumption by detection cable length and operating loading, auto adjust signal intensity, Reduce energy consumption, protect the environment.
The product is highly integrated design, simple operation, a variety of models optional, suitable for a variety of applications.
| Model | PE-S1200-24G | Packet Buffer | 4Mbits |
| Chipset | EN8853D+2*EN8808Q | Jumbo Frame | 9216Bytes |
| Standards | IEEE 802.3i、IEEE 802.3u、IEEE 802.3ab、IEEE 802.3x、 IEEE 802.3az | LED indicators Per Device | Power：Green |
| Ports | 24 x 10/100/1000Mbps Auto-Negotiation ports | LED indicators Per-Port | Link/Act：Green |
| Network Media (Cable) | 10Base-T: UTP category 3,4,5 cable (maximum 100m) 100Base-Tx: UTP category 5,5e cable (maximum 100m) 1000Base-T:UTP category 5e,6 cable (maximum 100m) | Power Supply | AC 110-240V/50-60Hz 1.5A |
| Mode | Normal：all ports can communicate with each other Flow control off：turn off all ports flow control fuction, all ports can communicate with each othe Port isolation ：1 to 22 can not communicate with each other, but can communicate with 23-24 port Port aggregation：23-24 ports are aggregation ports | Dimensions（L×W×H） | 280*180*44mm |
| Transfer Method | Store-and-Forward | Operating Temperature | 0℃ ~ 40℃ |
| MAC Address Table | 8K | Storage Temperature | -40℃ ~70℃ |
| Switching Capacity | 48Gbps | Operating Humidity | 10%~90% non-condensing |
| Packet Forwarding Rate | 35.7Mpps | Storage humidity | 5%~90% non-condensing |
