Complies with IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, and IEEE 802.3az standards
8 x 10/100Mbps Auto-Negotiation RJ45 ports, supporting Auto-MDI/MDIX
Supports IEEE 802.3x flow control for full-duplex mode and backpressure for half-duplex mode
Operates in store-and-forward mode
Supports MAC address auto-learning and auto-aging
Supports IEEE 802.3az protocol for power-saving
LED indicators for monitoring power, link/activity
Plastic case
External power adapter supply
Intelligent identification,High performance and durable stability,Store-and-forward mode,MAC address auto-learning,Auto-MDI/MDIX

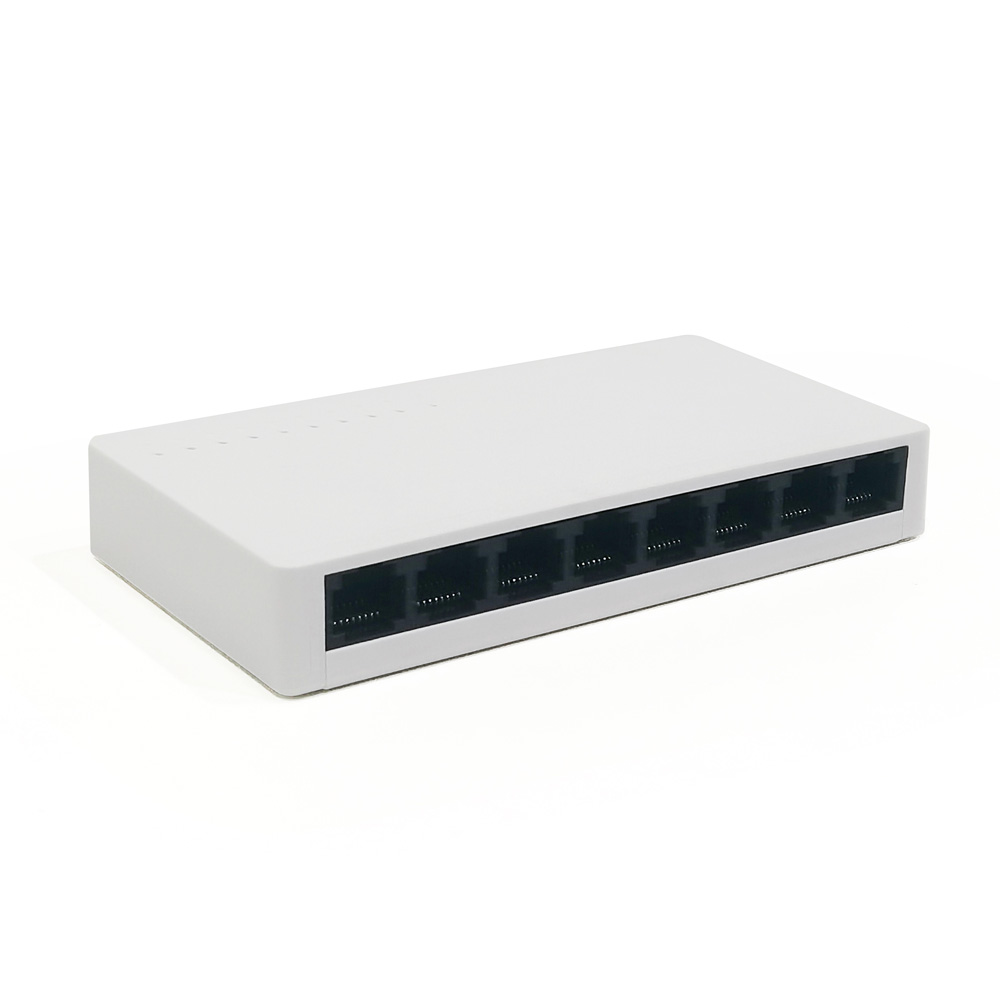

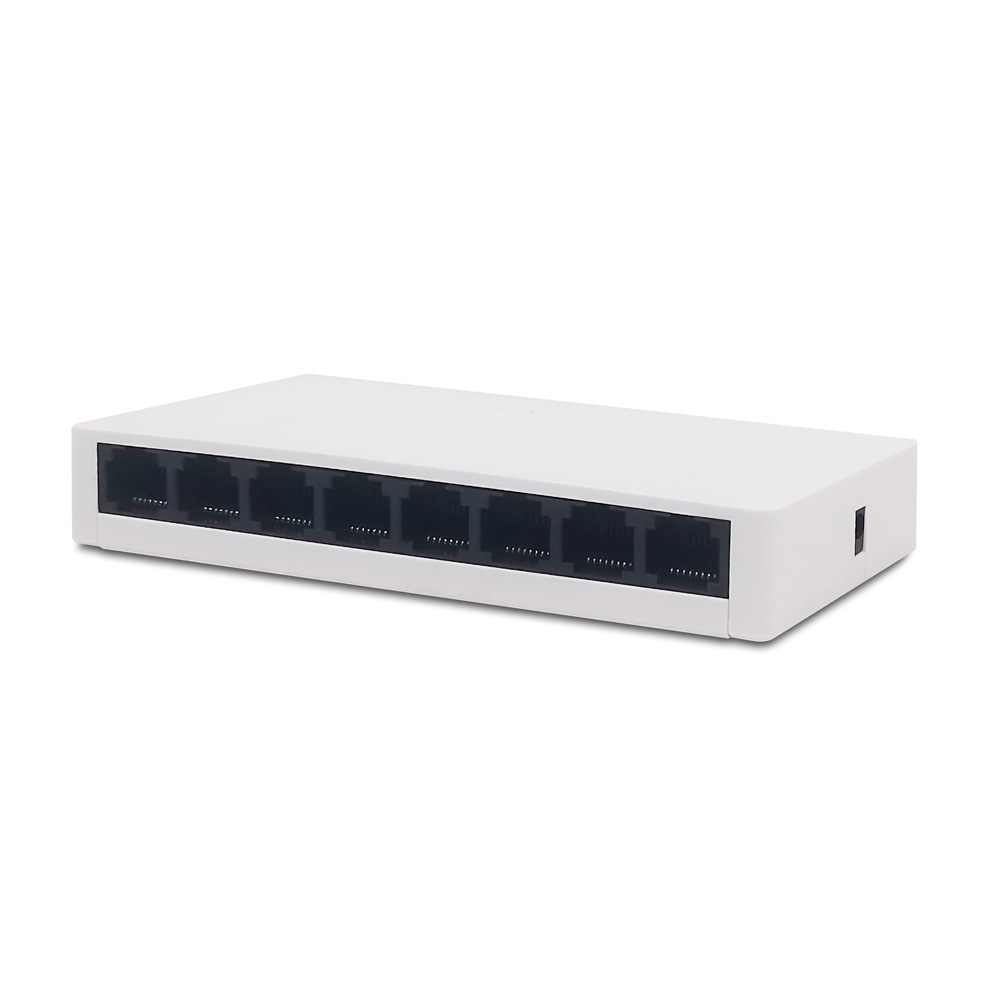

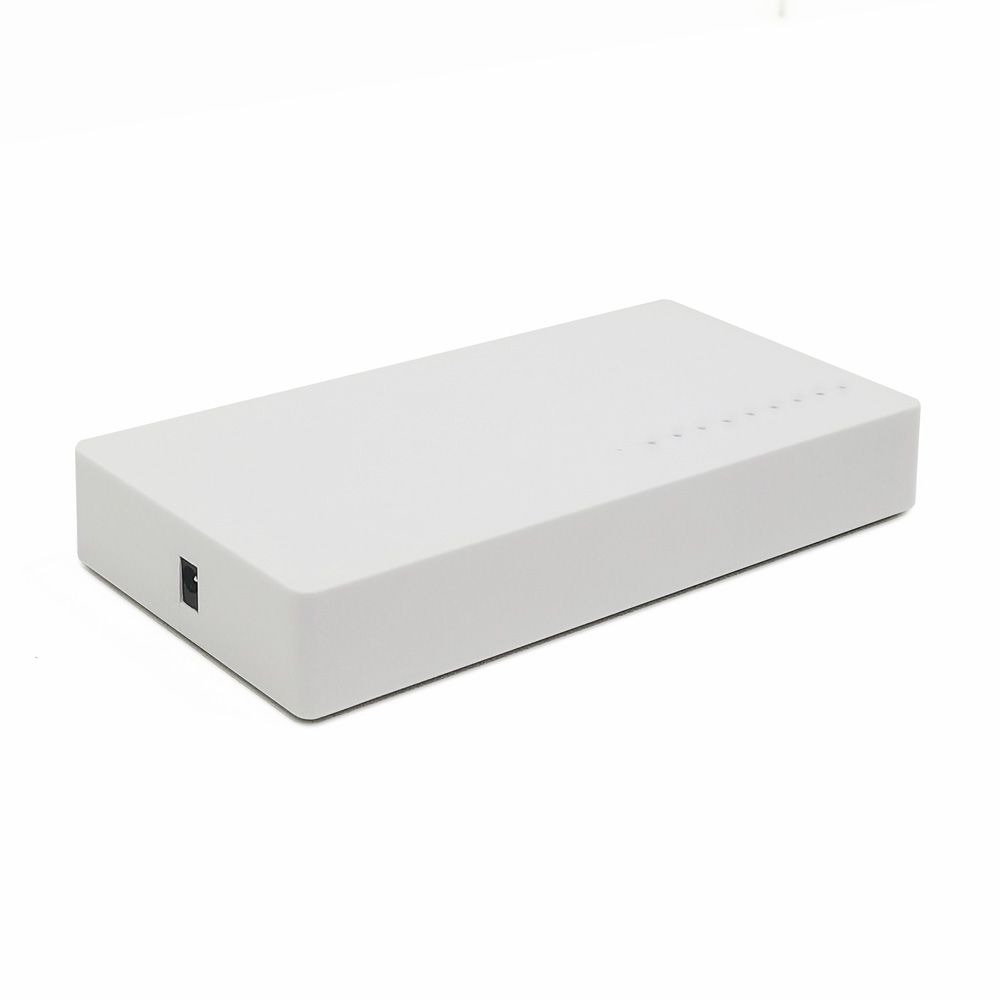

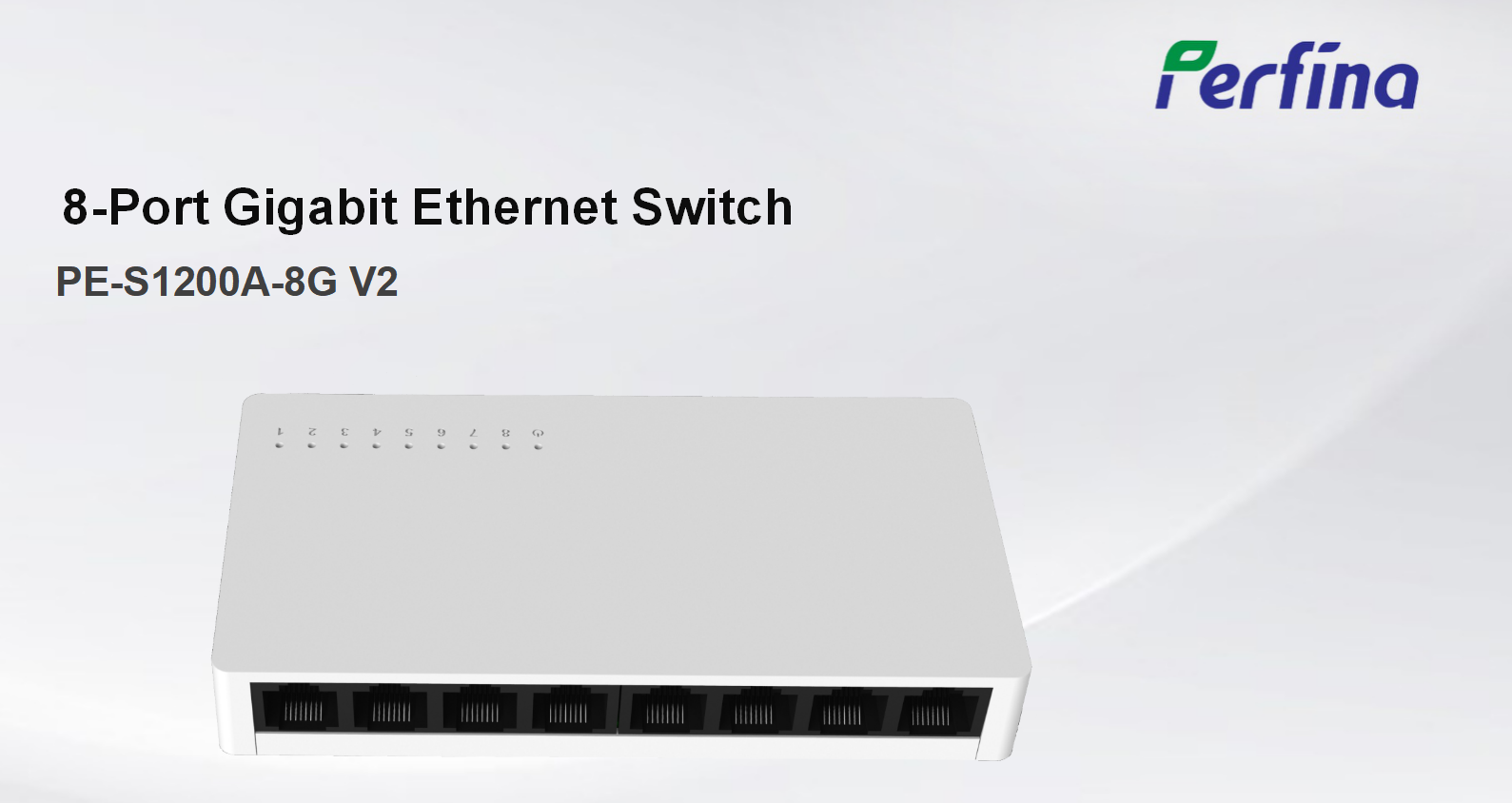

PE-S1200-8G is a full Gigabit Ethernet switch that provides 8 x 10/100/1000Mbps adaptive RJ45 ports and supports wire-speed forwarding on all ports. Based on Gigabit Ethernet network technology, it effectively avoids network transmission bottlenecks and offers excellent network adaptability. The switch adopts Green Ethernet technology (802.3az), which automatically adjusts signal strength by detecting cable length and workload. This helps effectively reduce energy consumption and protect the environment, without compromising equipment performance or efficiency. The switch is easy to install and use and is ideal for expanding your home or office network. The LED indicators on the front panel dynamically display the operation status of the network.
| Model | PE-S1200A-8G V2 | Chipset | EN8851F |
| Standards | IEEE 802.3i，IEEE 802.3u，IEEE802.3ab，IEEE802.3x，IEEE802.3az | Number of Ports | 8 x 10/100/1000Mbps adaptive RJ45 port（Auto MDI/MDIX） |
| Network Media (Cable) | 10BASE-T: UTP category 3,4 cable (maximum 100m) 100BASE-TX: UTP category 5,5e cable (maximum 100m) 1000Base-T: UTP category 5, 5e,6 cable (maximum 100m) | MAC Address Tabl | 1K |
| Switching Capacity | 1.6Gbps | Packet Forwarding Rate | 11.9Mbpps |
Packet Buffer | 4Mbits | Jumbo Frame | 15KBytes |
Per Port | Link/Act: Green | Per Device | Power: Green |
Power Specifications | 5V1A Adapter | ||
Dimensions (L × W × H) | 127 x 67 x 20 mm | Environment | Operating Temperature: 0℃~40℃ Storage Temperature: -40℃~70℃ Operating Humidity: 10%~90% RH non-condensing Storage humidity: 5%~90% RH non-condensing |
Transfer Method | Store-and-Forward |
