5 10/100Mbps Auto-Negotiation RJ45 ports, supporting Auto-MDI/MDIX;
Switching Capacity：1Gbps;
Supports MAC address auto-learning and auto-aging;
Operates in store-and-forward mode;
5 10/100Mbps Auto-Negotiation RJ45 ports, supporting Auto-MDI/MDIX，Switching Capacity：1Gbps，Supports MAC address auto-learning and auto-aging，Operates in store-and-forward mode

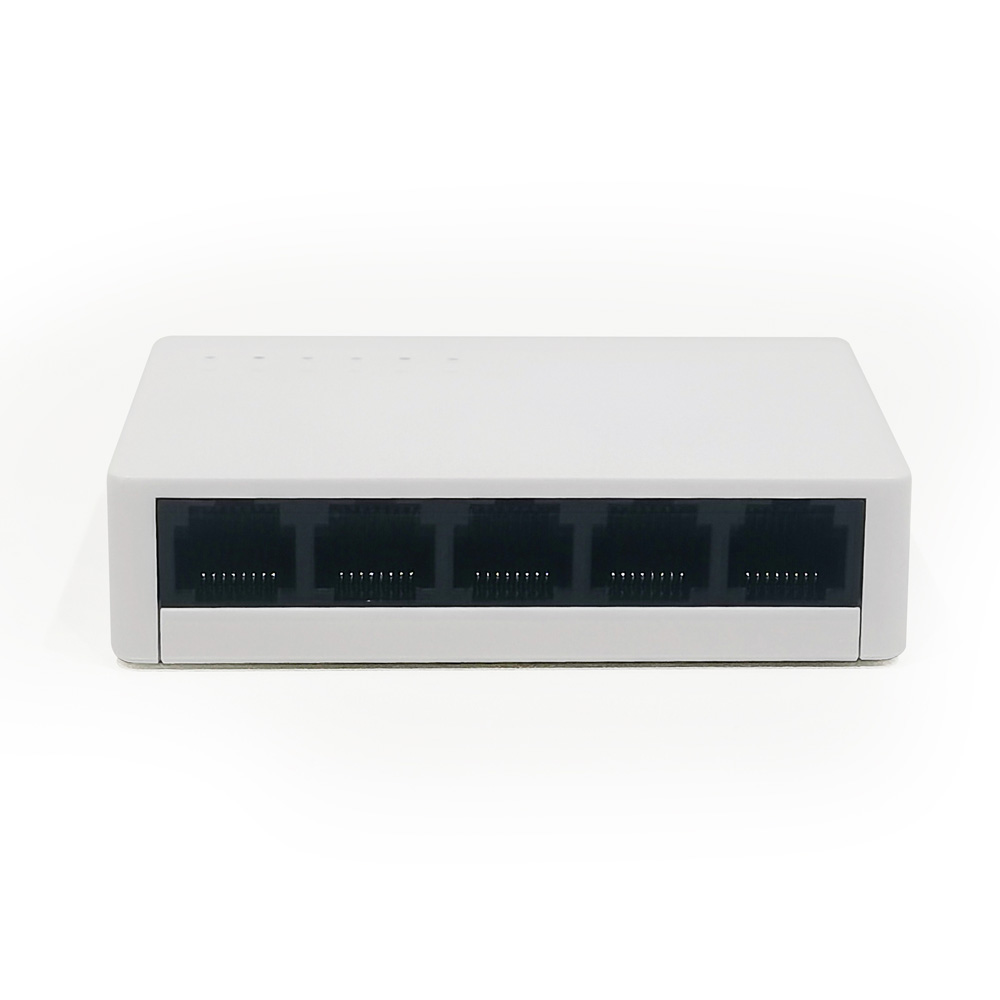

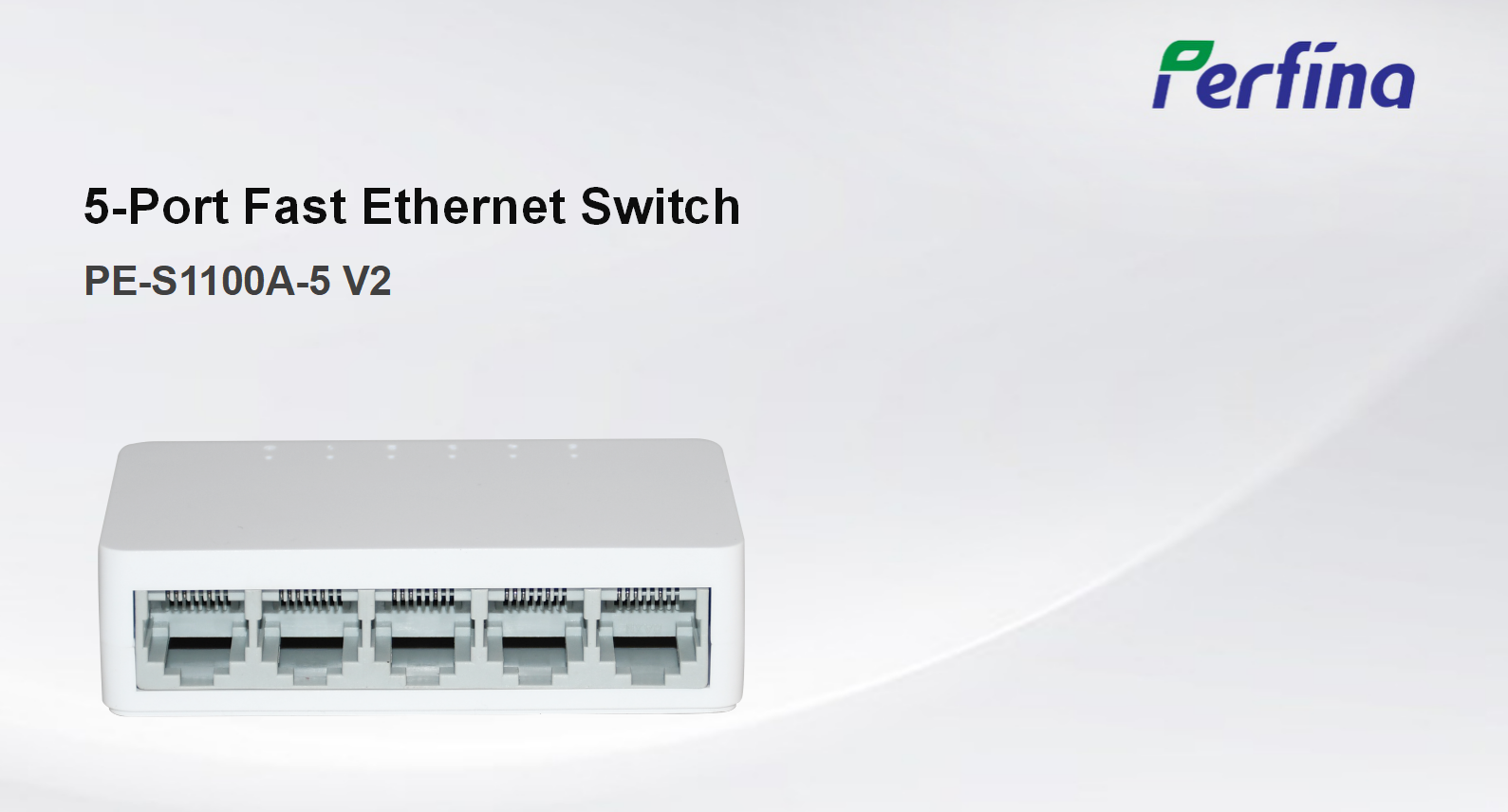

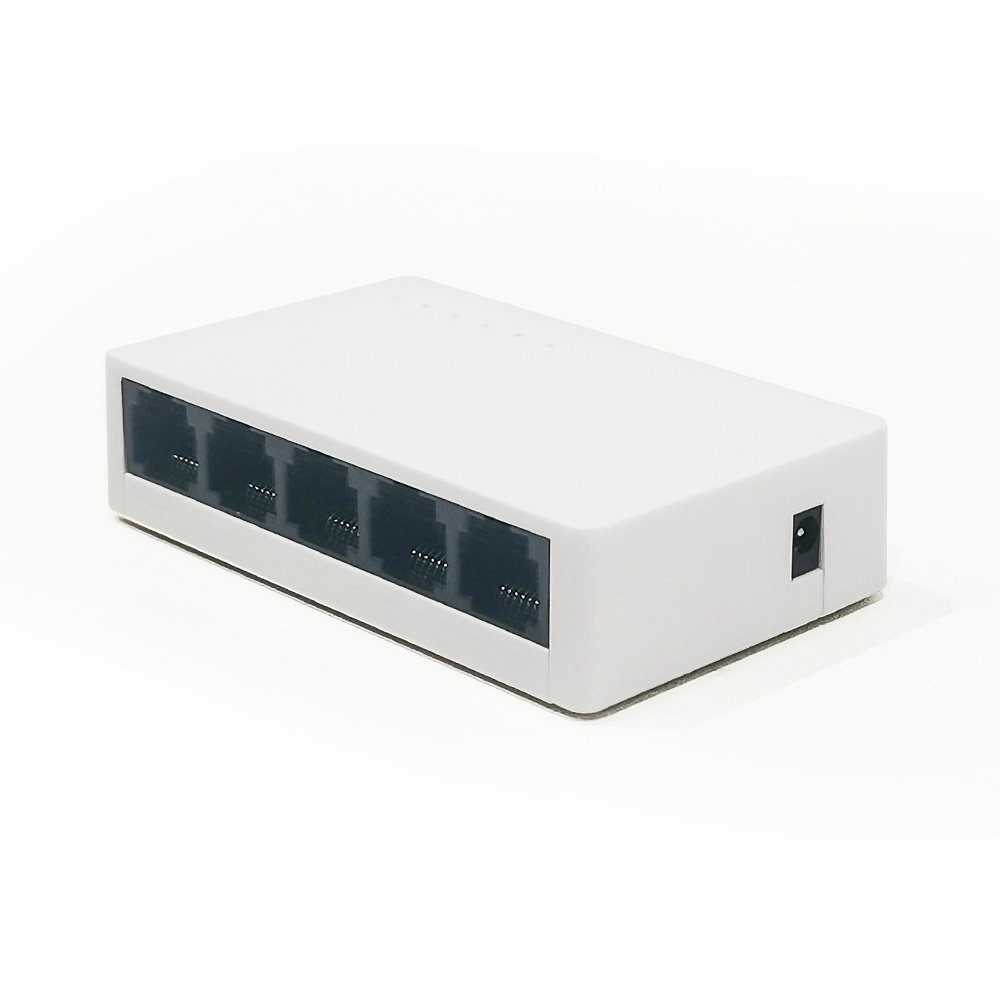

PE-S1100-5 is a 5-port 10/100M Ethernet switch that uses a 5V DC power input. It provides 5 10/100M RJ45 adaptive ports and supports fully automatic cross-identification with a dynamic LED display, making it easy to use without requiring manual operation. The product is lightweight, easy to operate, offers good performance, and is essential for home use. It supports industrial-standard guide installation, effectively distributing power to each port. The switch helps eliminate network bottlenecks, making it a powerful advantage in large network environments, with excellent network adaptability.
| Model | PE-S1100A-5 V2 | Chipset | IP175G |
| Standards | IEEE802.3i，IEEE802.3u，IEEE802.3x，IEEE802.3az | Number of Ports | 5 X 10/100Mbps Auto-Negotiation ports |
| Network Media (Cable) | 10BASE-T: UTP category 3,4,5 cable (maximum 100m) 100BASE-T: UTP category 5,5e cable (maximum 100m) | MAC Address Table | 1K |
| Switching Capacity | 1.6Gbps | Packet Forwarding Rate | 745K pps |
| Packet Buffer | 448K Bits | Jumbo Frame | 1552/1536Bytes |
| Per Port | 10/100Mbps Link/Act：Green | Per Device | Power: Green |
| Power Supply | AC 200-240V/50-60Hz DC 5V/550MA (Power adapter) | Power Consumption | Maximum: 0.694W（DC 5V） |
| Dimensions (L × W × H) | 81*48*22mm | Environment | Operating Temperature: 0℃ - 40℃ Storage Temperature: -40℃ - 70℃ Operating Humidity: 10%~90% non-condensing Storage humidity: 5%~90% non-condensing |
