8 x 10/100Mbps Auto-Negotiation RJ45 ports, supporting Auto-MDI/MDIX
Switching Capacity：1.6Gbps
Supports MAC address auto-learning and auto-aging
Operates in store-and-forward mode

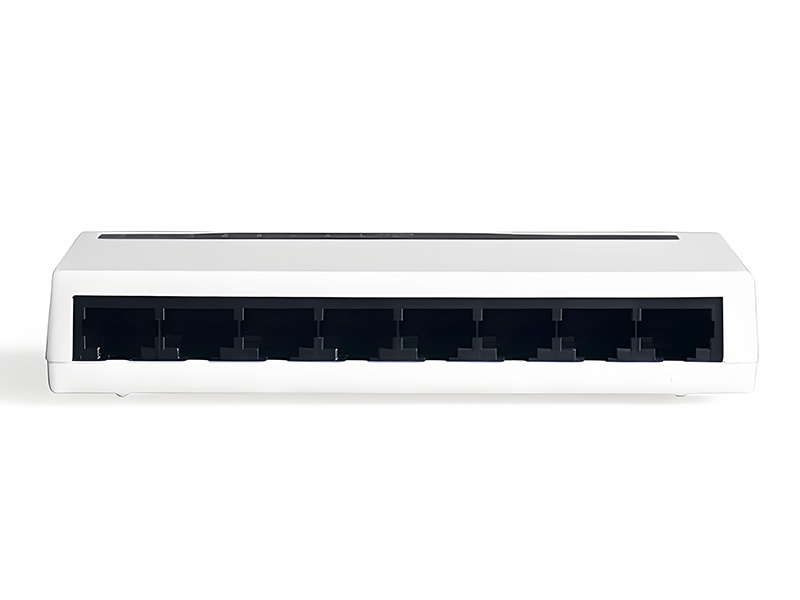

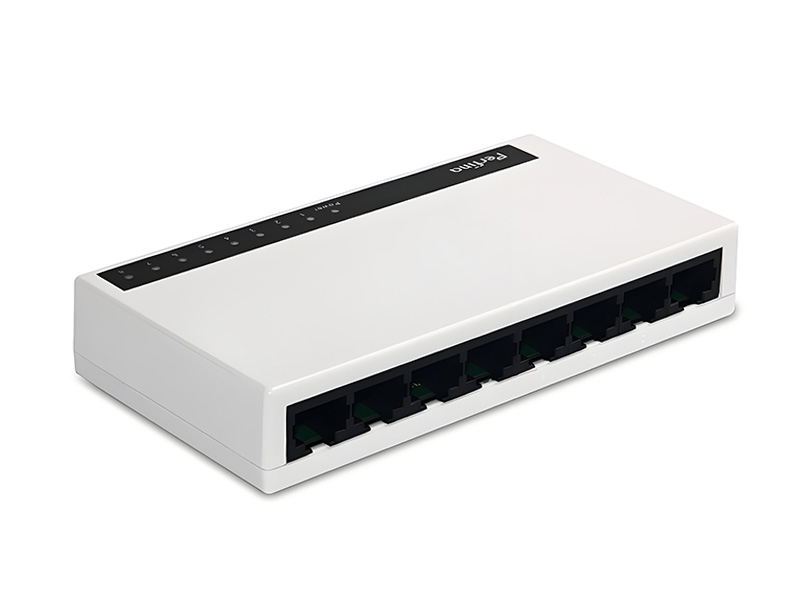

PE-S1100-8 adopts the IP178G chip from IC PLUS, featuring an 8-port 10/100Mbps unmanaged Fast Ethernet switch. The switch provides 8 x 10/100Mbps Auto-Negotiation RJ45 ports, all of which support the Auto-MDI/MDIX function. This low-cost, easy-to-use switch offers high performance and provides a seamless, standard upgrade to enhance your existing network to a 100Mbps network. It's ideal for small offices and home use, boosting your network performance with full-duplex data transfer.
| Model | PE-S1100A-8 | Chipset | IP178G |
| Standards | IEEE802.3i，IEEE802.3u，IEEE802.3x，IEEE802.3az | Number of Ports | 8 X 10/100Mbps Auto-Negotiation ports |
| Network Media (Cable) | 10BASE-T: UTP category 3,4,5 cable (maximum 100m) 100BASE-T: UTP category 5,5e cable (maximum 100m) | MAC Address Table | 1K |
| Switching Capacity | 1.6Gbps | Packet Forwarding Rate | 1.19Mpps |
| Packet Buffer | 448K Bits | Jumbo Frame | 1552/1536Bytes |
| Per Port | 10/100Mbps Link/Act：Green | Per Device | Power: Green |
| Power Supply | AC 200-240V/50-60Hz DC 5V/550MA (Power adapter) | Power Consumption | Maximum: 1.26W（DC 5V） |
| Dimensions (L × W × H) | 125*53*22mm | Environment | Operating Temperature: 0℃ - 40℃ Storage Temperature: -40℃ - 70℃ Operating Humidity: 10%~90% non-condensing Storage humidity: 5%~90% non-condensing |
