Intelligent identification
High performance and durable stability
Store-and-forward mode
MAC address auto-learning
Auto-MDI/MDIX
Intelligent identification,High performance and durable stability,Store-and-forward mode,MAC address auto-learning,Auto-MDI/MDIX

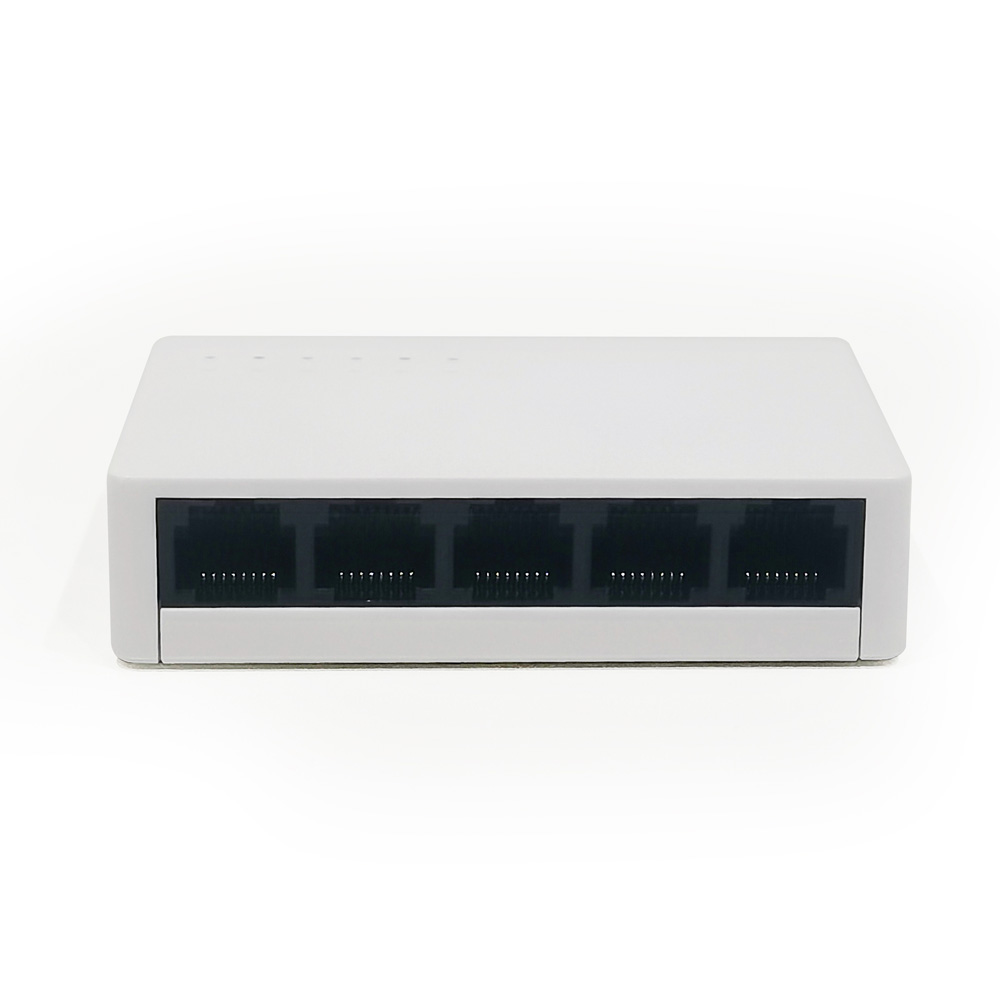

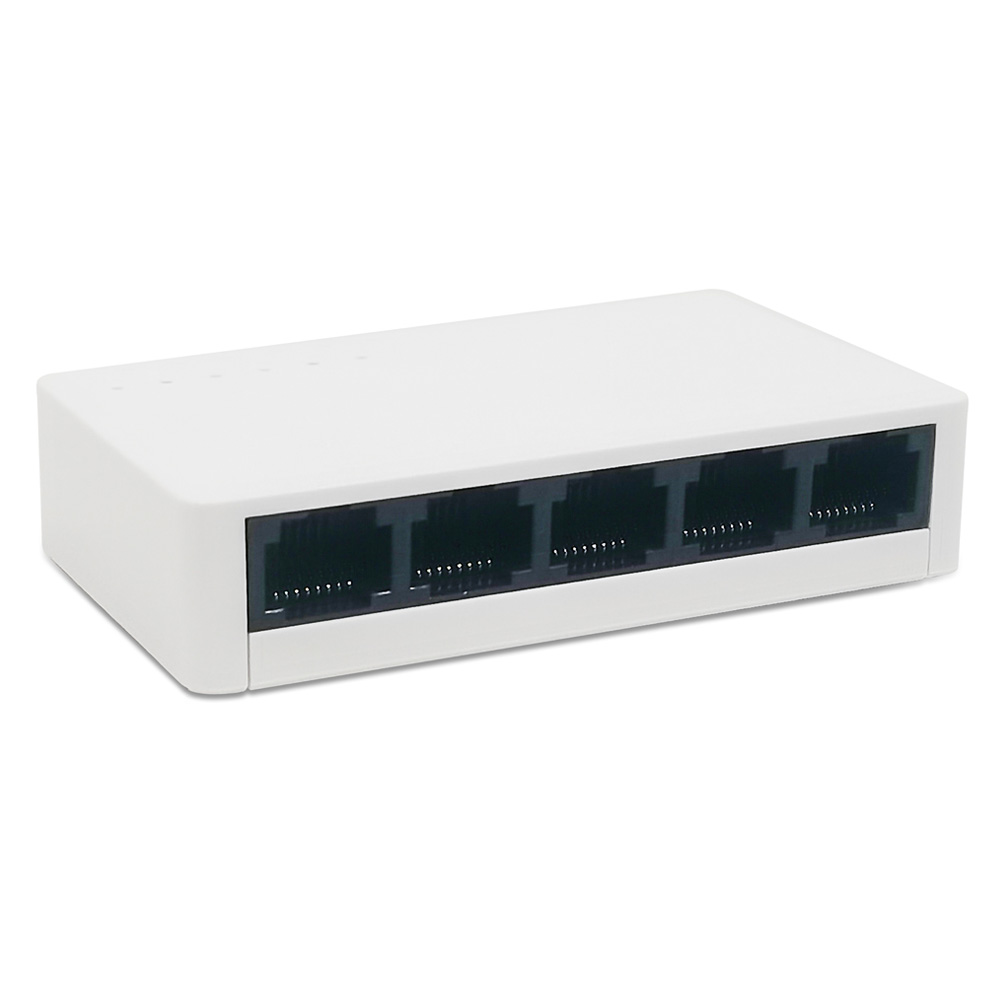

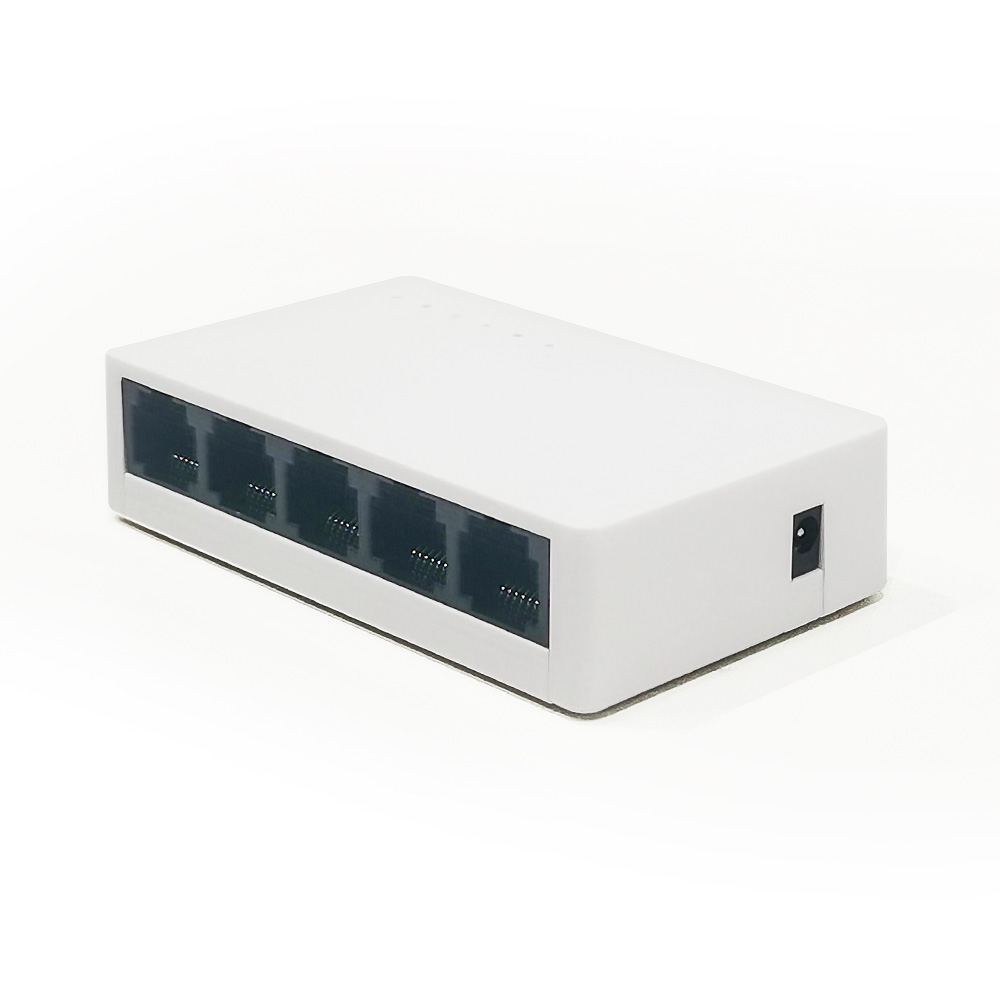

PE-S1200-5G is a full Gigabit Ethernet switch that provides five 10/100/1000Mbps adaptive RJ45 ports and supports wire-speed forwarding on all ports. Based on Gigabit Ethernet network technology, it effectively avoids network transmission bottlenecks and offers excellent network adaptability. The switch adopts Green Ethernet technology (802.3az), which automatically adjusts signal strength by detecting cable length and workload, effectively reducing energy consumption and promoting environmental protection, without compromising equipment performance and efficiency. The switch is easy to install and use and is suitable for expanding your home or office network. The LED indicators on the front panel dynamically display the operation status of the network.
| Model | PE-S1200A-5G V2 | Chipset | EN8850DN |
| Standards | IEEE 802.3i，IEEE 802.3u，IEEE802.3ab，IEEE802.3x，IEEE802.3az | Number of Ports | 5 x 10/100/1000Mbps adaptive RJ45 port（Auto MDI/MDIX） |
| Network Media (Cable) | 10BASE-T: UTP category 3,4 cable (maximum 100m) 100BASE-TX: UTP category 5,5e cable (maximum 100m) 1000Base-T: UTP category 5, 5e,6 cable (maximum 100m) | MAC Address Table | 2K |
| Switching Capacity | 10Gbps | Packet Forwarding Rate | 7.44Mbps |
Packet Buffer | 384KByte | Jumbo Frame | 15KBytes |
Per Port | Link/Act：Green | Per Device | Power: Green |
Power Supply | 5V 550mA Adapter | ||
Dimensions (L × W × H) | 100 x 64 x 24mm | Environment | Operating Temperature: 0℃ - 40℃ Storage Temperature: -40℃ - 70℃ Operating Humidity: 10%~90% non-condensing Storage humidity: 5%~90% non-condensing |
