3.0MP resolution with a 4MM lens, providing an 80° viewing angle.
Supports 355° horizontal and 90° vertical rotation for wide-area coverage.
Equipped with 4 infrared LEDs and 4 white LEDs, offering night vision up to 8 meters in various lighting conditions.
Supports up to 128GB TF card storage or optional cloud storage.

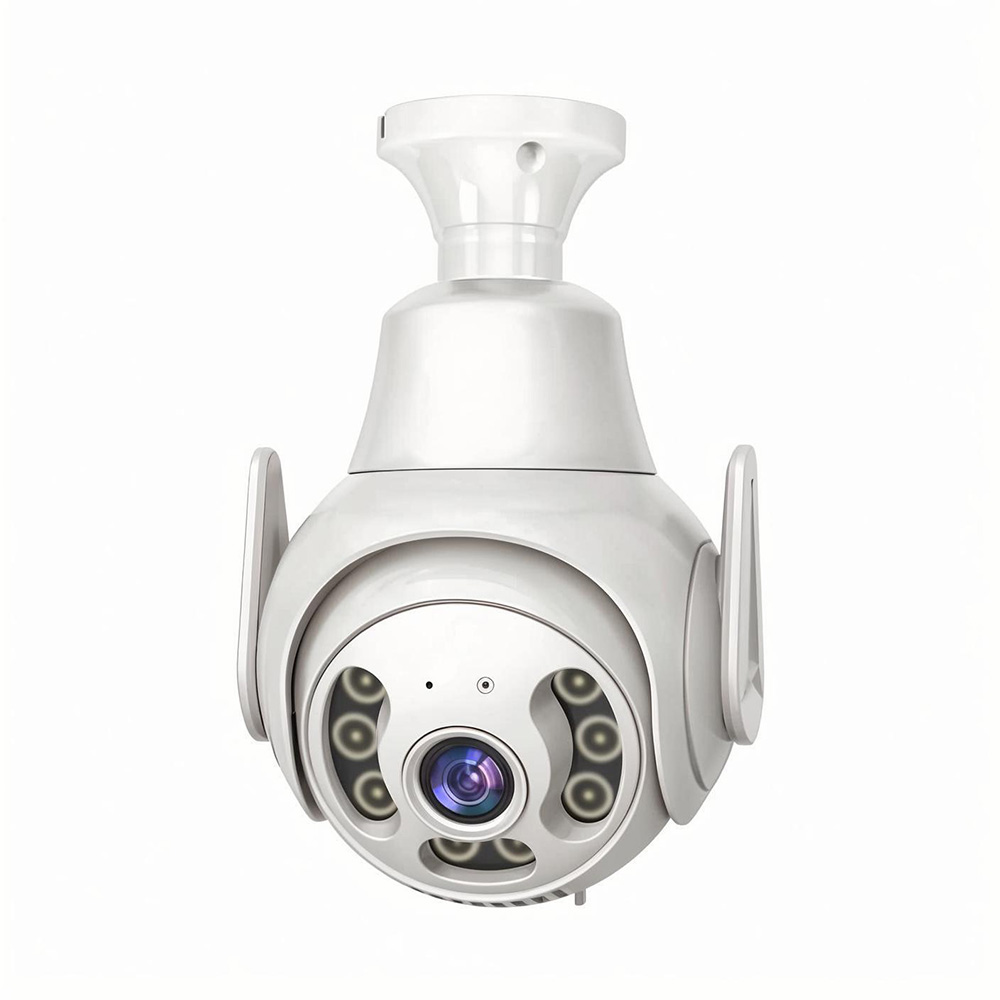

The A023 smart camera offers high-definition surveillance with a 3.0MP resolution and a 4MM lens, providing an 80° viewing angle. It supports 355° horizontal and 90° vertical pan-tilt for wide coverage. With 4 infrared and 4 white LEDs, the camera ensures excellent night vision up to 8 meters. The camera is equipped with motion detection and optional AI human intrusion alerts, and it allows for two-way audio through its built-in microphone and speaker. Supporting Wi-Fi connectivity, it offers storage options via TF card (up to 128GB) or optional cloud storage. It is designed to operate in various environments with temperatures ranging from -10℃ to 50℃
| Model | PE-A023 | APP | V380 Pro |
| System structure | Embedded Linux system, ARM chip structure | Chip | AK3918E V330L |
| Resolution | 3.0MP | Sensor Resolution | 1/2.9″SC2336 2304*1296P |
| Lens | 4MM | View angle | 80° |
| Pan-tilt | Rotates Horizontal:355° Vertical：90° | Preset point quantity | 6pcs |
| Video compression standa | H.264/20FPS | Video format | PAL |
| Minimum illumination | 0.01Lux@（F2.0，VGC ON),O.Luxwith IR | Electronic shutter | Auto |
| Backlight compensation | Support | Noise reduction | 2D/3D |
| Infrared LED | 4pcs Dual core LED | Network connection | WIFI and AP hotspot |
| Network | WIFI wireless transmission (support IEEE802.11b/g/n wireless protocol) | Network protocol | TCP/IP、DHCP |
| Night Version | IR-CUT switch Automatic，about 5-8meters (It varies from environment) White Led can be remote control via APP:①Turn ON ②Turn OFF ③ Auto (In automatic mode, the infrared light will be turned ON after the IR-cut switch to night vision automatically , it can intelligently detected human body, and Turn ON/OFF the White light intelligently ) | ||
| Audio | Built-in microphone and speaker, support two-way audio and real-time transmission. ADPCM audio compression standard, self-adapt to code stream | ||
| Alarm | ①Motion detection and picture push | Storage | TF Card（Max 128G）；Cloud storage (optional) |
| Power input | 110-240V/2A E27 holder | Work environment | Working temperature:-10℃ ~ + 50℃ Working Humidity: ≤95%RH |
