Complies with IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z, and IEEE 802.3ad standards
Supports IEEE 802.3at/af PoE standards
Provides PoE power of up to 30 W for each PoE port, with a total power capacity of up to 370 W for all PoE ports
Supports IEEE 802.3x flow control for full-duplex mode and backpressure for half-duplex mode
Supports MAC address auto-learning and auto-aging
Operates in-store and forward mode
Supports SNMP/RMON/TELNET
Supports IEEE 802.1Q VLAN with a 4K VLAN table
Supports IEEE 802.1p priority queues
Supports 2K + 256-entry ingress and egress ACL
Support storm control
Supports QoS, port mirroring, and link aggregation protocol
LED indicators for monitoring PSE, link/activity/speed
Supports web-based management
PE-S3200-24GP4F is a high-performance, second-generation managed gigabit switch. It provides twenty-four 10/100/1000 Mbps self-adapting RJ45 ports, plus four gigabit SFP ports, which can be used to link to higher-bandwidth upstream equipment.
It supports VLAN ACL based on ports, making it easy to implement network monitoring, traffic regulation, priority tagging, and traffic control. Additionally, it supports traditional STP/RSTP/MSTP link protection technology, significantly improving fault tolerance and redundancy backup to ensure stable network operation.
It also supports time-based ACL control, allowing for precise access time management. Furthermore, it supports 802.1X authentication based on ports and MAC addresses, enabling easy user access management. With a perfect QoS strategy and a variety of VLAN functions.

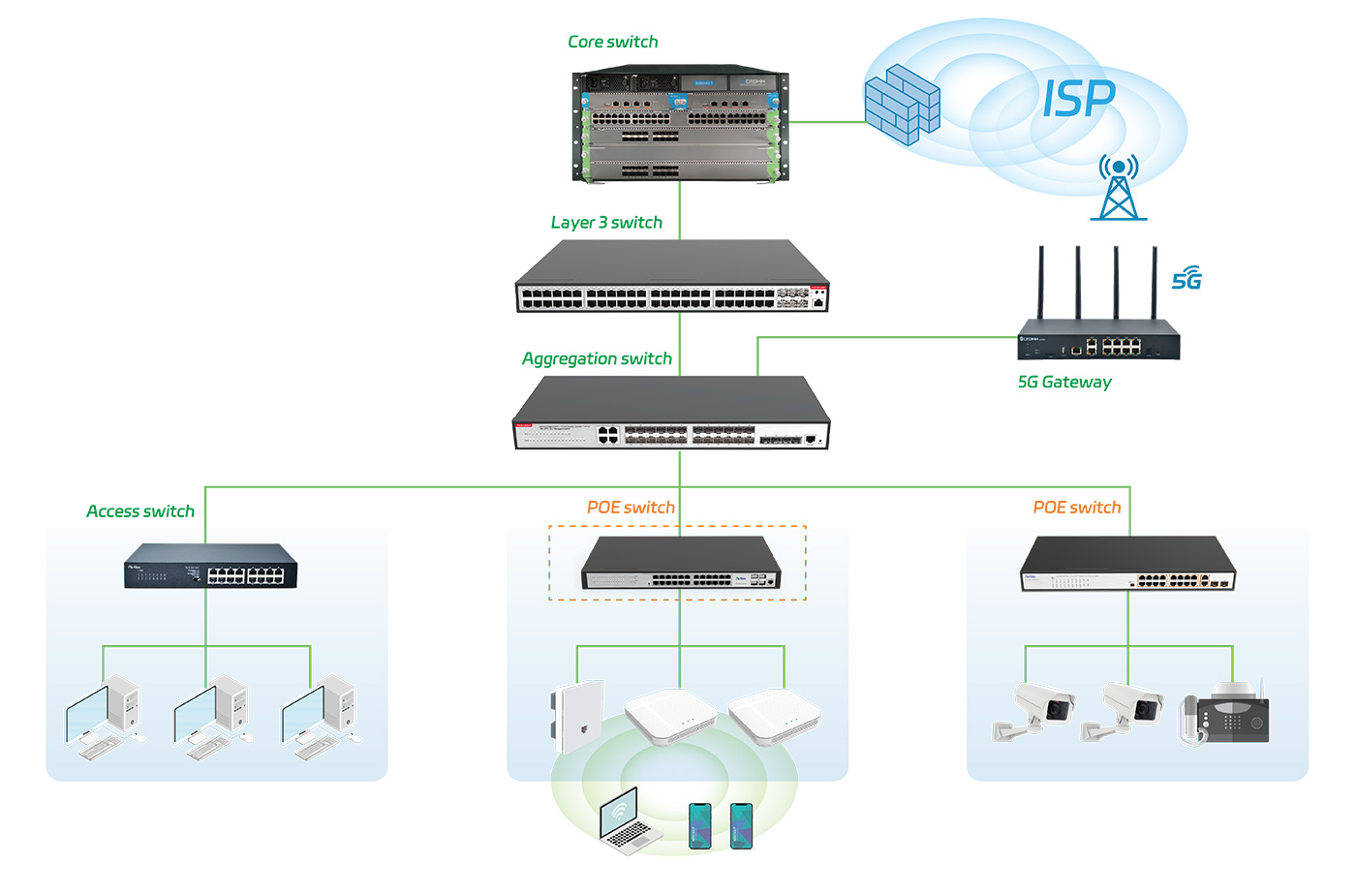

The PoE ports can automatically detect and supply power to IEEE 802.3at/af compliant Powered Devices (PD). In this configuration, electrical power is transmitted along with data over a single cable, allowing you to expand your network in locations without power lines or outlets, making it ideal for devices such as access points (AP), IP cameras, or IP phones.
Hardware Specification
| Model | PE-S3200-24GP4F | PoE Ports(RJ45) | 24* PoE ports compliant with IEEE802.3at/af |
| Chipset | RTL8382M+2*RTL8218D+RTL8214FC+3*RTL8231+HT85F2280+3*IP808AR | Power Pin Assignment | 1/2(+),3/6(-) |
| Standards | IEEE 802.3i，IEEE 802.3u，IEEE 802.3ab，IEEE802.3x，IEEE802.3z，IEEE802.3ad，IEEE802.1P，IEEE802.1Q IEEE802.3at,IEEE802.3af | PoE Budget | 370W |
| Network Media (Cable) | 10BASE-T: UTP category 3,4,5 cable (maximum 100m) 100BASE-Tx: UTP category 5,5e cable (maximum 100m) 1000BASE-T: UTP category 5e,6 cable (maximum 100m) 1000Base-SX:62.5μm/50μm MMF(2m~550m) 1000Base-LX:62.5μm/50μm MMF(2m~550m) or 10μm SMF（2m~5000m） | LED indicators | Per Port: 10/100Mbps Link/Act:Orange 1000Mbps Link/Act: Green PoE: Yellow Per Device: Power: Green SYS:Green |
| Transfer Method | Store-and-Forward | Power Supply | AC 100-240V/50-60Hz 400W internal power |
| Switching Capacity | 56Gbps | Power Consumption | Maximum:430W(220V/50Hz) |
| Packet Forwarding Rate | 41.66Mbps | Dimensions ( W x D x H ) | 440*208*44mm |
| Packet Buffer | 4.1Mbit | Operating Temperature | 0℃ - 45℃ |
| MAC Address Table | 8K | Storage Temperature | -40℃ - 70℃ |
| Jumbo Frame | 9KByte | Operating Humidity | 10%~90% RH non-condensing |
| Number of Ports | 24 x 10/100/1000Mbps Auto-Negotiation ports 4 x Gigabit SFP ports 1 x RJ45 Console Port | Storage humidity | 5%~90% RH non-condensing |
Software Specification
| PoE | Global Configuration Port Configuration PoE Delay/PoE Restart PoE Monitor RMON (1,2,3,9) | ||
| LLDP | LLDP Port Configuration MED Network Porxy | STP | IEEE 802.1D STP IEEE 802.1W RSTP IEEE 802.1S MSTP |
| Management | System information Ping Test /Traceroute Factory defualt Backup/upgrade Management Configuration Management | Security | Broadcast / Uncast / Multicast Storm Control IEEE 802.1x, Radius,TACACS+ DHCP Snooping/DHCP Relay DHCP Server ERPS IP Source Guard ARP Check DAI |
| System | IP Configuration(IPV4、IPV6) User Configuration Time Settings(SNTP) Log Management SNMP Management(V1,V2C,V3) RMON(1,2,3,9) | ACL | MAC-Based ACL MAC-Based ACE IPv4-Based ACL IPv4-Based ACE |
| Port | Port Configuration Link Aggregation(static、Lacp) Port Mirroring Jumbo Frame Port Security | QoS | WRR (Weighted Round Robin) Port based QoS IEEE 802.1p Class of Service DSCP-based QoS QoS basic mode QoS advanced mode (Policy based) |
| Vlan | Port based VLAN,Private VLAN MAC based VLAN Voice VLAN Gvrp | Bandwidth Control | Ingress Port Ingress VLAN Egress Port Egress Queue |
| IGMP | IGMP Snooping（V2、V3） Multicast Group（256） | MAC Address Setting | Static Mac Setting MAC Filtering Dynamic Address Learn/Setting |
