Comply with IEEE 802.3i、IEEE 802.3u、IEEE 802.3ab、IEEE 802.3x、IEEE 802.3at、IEEE 802.3af
The maximum output power of a single port is 30W, and the total output power of PoE is 240W
The lightning protection capability of the port reaches 6kV, and the product has been used stably for 3 years
Supports SP and WDRR queue scheduling methods, with a congestion avoidance (Tail Drop) mechanism, and up to 8 QoS hardware queues.
Supports management port rate, duplex, auto-negotiation, and port mode
Supports loop protection.
Supports load balancing based on MAC, IP, L4, and port.
Supports suppression of multicast, broadcast, and unknown unicast packets, with multicast bandwidth control granularity of 1%/1 pps.
Supports one-to-one and many-to-one mirroring based on flow, with support for only one mirror group.
Supports port-based VLANs.
Supports static address filtering and IGMP snooping for V1 and V2.
Supports MAC filtering time, MAC address table clearing, MAC address binding, maximum MAC count configuration, blacklist data, and port isolation.
The PE-S2200-16GP4F is a gigabit light-managed Ethernet switch that offers 16 10/100/1000 Mbps PoE RJ45 ports and 4 adaptive 100/1000 Mbps SFP ports, supporting line-speed forwarding on all ports. It features port-based VLAN support for easy network monitoring, traffic management, and data forwarding control. This product, designed for high integration, is lightweight and user-friendly, making it suitable for medium to large enterprises.
Utilizing store-and-forward technology with dynamic memory allocation ensures effective distribution to each port, while flow control helps minimize packet loss during transmission and reception.
Network port VLAN configuration, static MAC address binding, port isolation, loop detection, device restart and other operations can be carried out through Web. It can be connected to customer cloud and support cloud management to provide a more efficient, simple, secure and easy-to-use remote management mode.

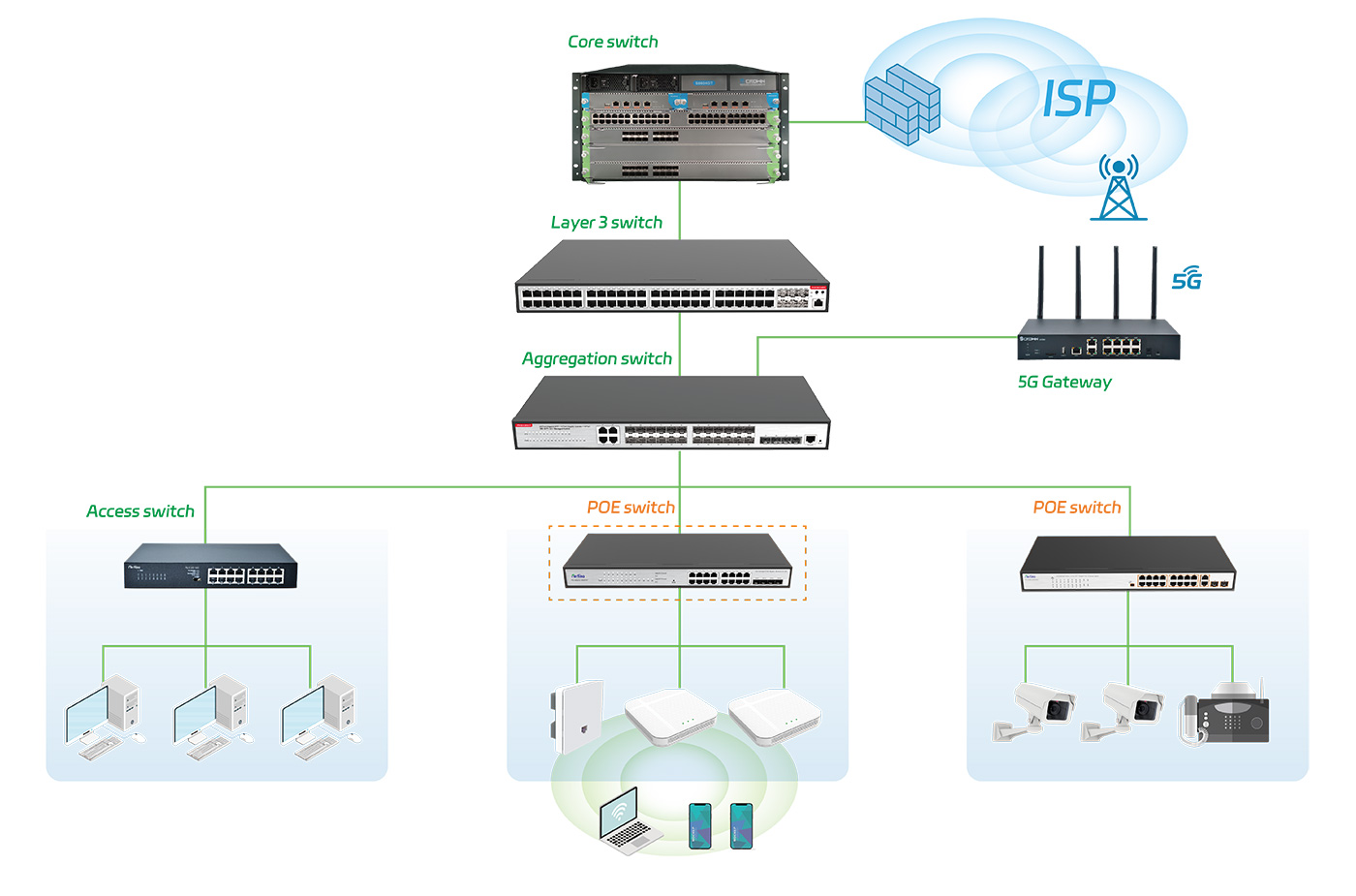

Each RJ45 port has a POE power supply function, supports the IEEE802.3at standard, and is backward compatible with 802.3af. It can be used as a power-over-Ethernet device. It can automatically detect and identify power-receiving devices that comply with the standard, and power it through a network cable.The product has a highly integrated design, simple operation, and multiple modes to choose from, which is suitable for various applications, especially for security monitoring occasions.
Hardware Specification
| Model | PE-S2200-16GP4F | Jumbo Frame | 9600Bytes |
| Chipset | CTC2118+CTC21108+2*IP808AR | Power Supply | 100-240V,50/60Hz,54V 4.9A |
| Standards | IEEE 802.3i、IEEE 802.3u、IEEE 802.3ab、IEEE 802.3x、IEEE802.3at、IEE802.3af | PoE Power Consumption | Maximum：240W |
| Ports | 16*10/100/1000Mbps Auto-Negotiation ports（Auto MDI/MDIX） 4*100/1000Mbps SFP | PoE Power Supply | Ports 1 to 16 support IEEE 802.3af/at standard PoE power supply1 2 +, and 3 6 - |
| Network Media(Cable) | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m) 1000Base-SX:62.5μm/50μm MMF(2m~550m) 1000Base-LX:62.5μm/50μm MMF(2m~550m)Or 10μm SMF（2m~5000m） | LED indicators | Per Device Power：Green Per-Port Link/Act/Combo：1000M：Green 100M：Orange PoE：Orange |
| Transfer Method | Store-and-Forward | Dimensions（L×W×H） | 440*208*44mm |
| MAC Address Table | 8K | Operating Temperature | 0℃ ~ 45℃ |
| Switching Capacity | 40Gbps | Storage Temperature | -40℃ ~70℃ |
| Packet Forwarding Rate | 29.76Mpps | Operating Humidity | 10%~90% non-condensing |
| Packet Buffer | 3Mbits | Storage humidity | 5%~90% non-condensing |
Software Specification
| Mac | Support static configuration and dynamic learning of MAC addresses. Support viewing and clearing MAC addresses. | ACL | Support adding, deleting MAC ACL and IPV4 ACL via the WEB |
| VLAN | Support setting management VLAN Support setting port VLAN type Support 802.1Q | QoS | Support configuring the ingress and egress rates of ports Support priority trust modes, including port, vlan, and DSCP Support DSCP and port priorities Support setting unicast and multicast SP and DWRR for ports |
| Loop Protection | Support BPDU protection, root protection, and loop protection | Reliability | Support link aggregation in static/LACP modes Support UDLD for one-way link detection Support Ethernet OAM |
| Multicast | Support IGMP v1/v2 Support IGMP Snooping Support IGMP Fast Leave | Security features | Support suppression function for multicast, broadcast and unknown unicast packets. Support port isolation |
| DHCP | Support DHCP Relay Support DHCP Client Support DHCP Snooping | Management and maintenance | Support MQTT Support management via browser-based WEB |
