Comply with IEEE 802.3i、IEEE 802.3u、IEEE 802.3ab、IEEE 802.3x、IEEE 802.3at、IEEE 802.3af
Supports PoE power up to 30W for each PoE port, total power up to 140W for all PoE ports
The lightning protection capability of the port reaches 6kV, and the product has been used stably for 3 years.
Supports SP and WDRR queue scheduling methods, with a congestion avoidance (Tail Drop) mechanism, and up to 8 QoS hardware queues.
Supports management port rate, duplex, auto-negotiation, and port mode.
Supports loop protection.
Supports load balancing based on MAC, IP, L4, and port.
Supports suppression of multicast, broadcast, and unknown unicast packets, with multicast bandwidth control granularity of 1%/1pps.
Supports one-to-one and many-to-one mirroring, based on flow, with support for only one mirror group.
Supports port-based VLAN.
Supports static address and filtering, IGMP snooping for V1 and V2.
Supports MAC filtering time, MAC address table clearing, MAC address binding, maximum MAC count configuration, blacklist data, and port isolation.

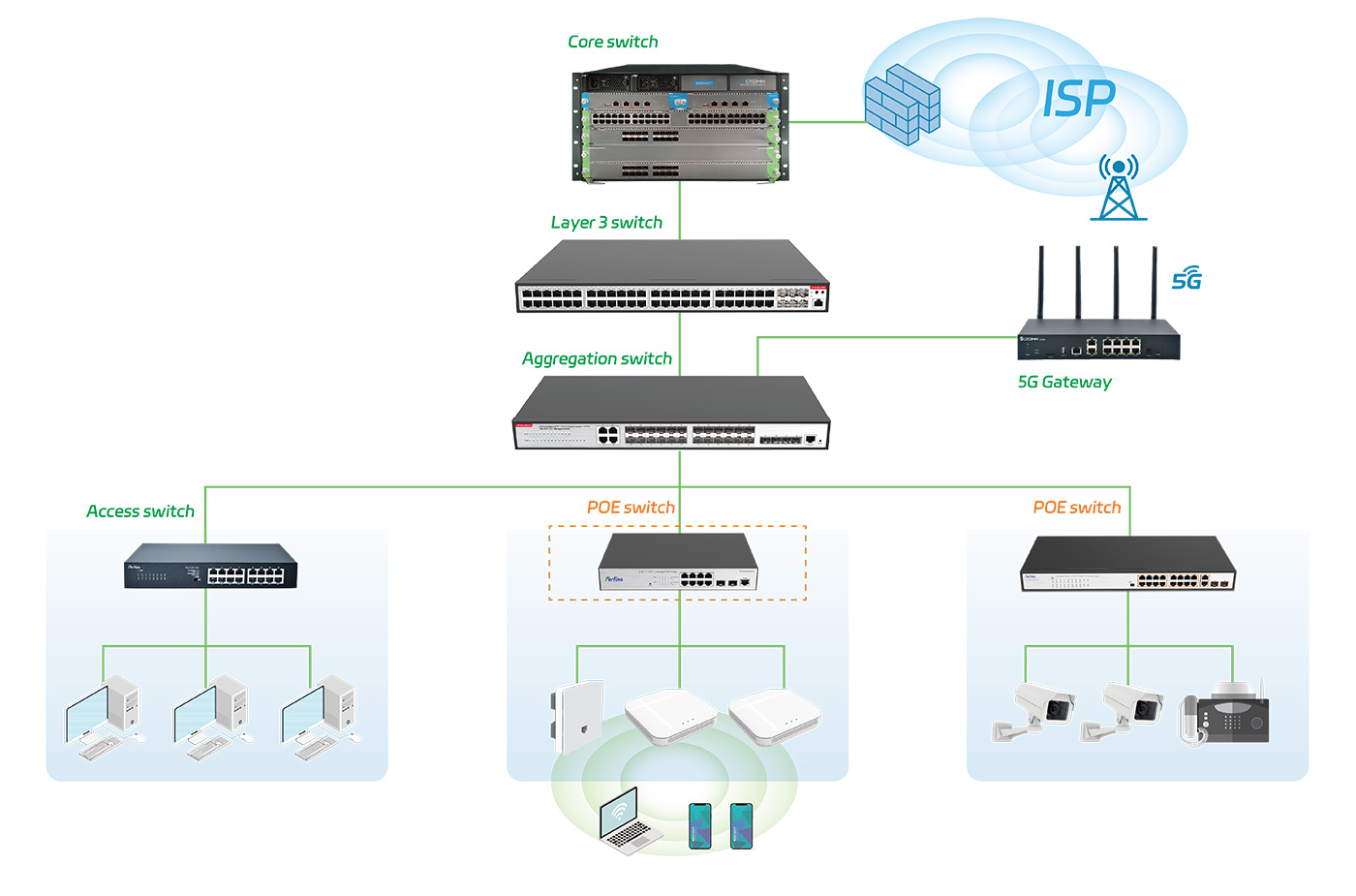

PE-S3200-8GP2F is a Gigabit light-managed Ethernet switch that offers 8 10/100/1000Mbps PoE RJ45 ports and 2 adaptive 100/1000Mbps SFP ports, supporting line-speed forwarding on all ports. It features port-based VLAN support for easy network monitoring, traffic management, and data forwarding control.
This product, designed for high integration, is lightweight and user-friendly, making it suitable for medium to large enterprises. Utilizing store-and-forward technology with dynamic memory allocation ensures effective distribution to each port, while flow control helps minimize packet loss during transmission and reception.
Network port VLAN configuration, static MAC address binding, port isolation, loop detection, device restart and other operations can be carried out through Web. It can be connected to customer cloud and support cloud management to provide a more efficient, simple, secure and easy-to-use remote management mode.
PoE ports can automatically detect and supply power with those IEEE 802.3at/af compliant Powered Devices (PD). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network where there are no power lines or outlets, where you wish to fix devices such as AP, IP Cameras or IP Phones, etc
Hardware Specification
| Model | PE-S3200-8GP2F | Power Pin Assignment | 1/2(+),3/6(-) |
| Chipset | RTL8380M+IP808AR | PoE Budget | 140W |
| Standards | IEEE 802.3i，IEEE 802.3u，IEEE 802.3ab，IEEE802.3x，IEEE802.3z，IEEE802.3ad，IEEE802.1P，IEEE802.1Q IEEE802.3at,IEEE802.3af | Surge | IEC61000-4-5, RJ45 Common Mode 6kV Power Common Mode 4kV Power Differential mode 2kV |
| Ports | 8 x 10/100/1000Mbps ports 2 x 1000Mbps SFP ports 1 x Console port | ESD | IEC61000-4-2, Level 3: Contact discharge: ±6kV, Air discharge: ±8kV |
| Network Media(Cable) | 10Base-T: UTP category 3, 4, 5 cable (maximum 100m) 100Base-Tx: UTP category 5, 5e cable (maximum 100m) 1000Base-T: UTP category 5e, 6 cable (maximum 100m) 1000Base-X: MMF,SMF | Power Supply | AC 100~240V, 50/60HZ, 150W internal power |
| Transfer Method | Store-and-Forward | LED Per Device | SYS&Mode:Green |
| MAC Address Table | 8K | LED Per-Port | RJ45/SFP+:Green, PoE:Orange |
| Switching Capacity | 20Gbps | Dimensions（L×W×H） | 280*180*44mm |
| Packet Forwarding Rate | 14.88Mpps | Operating Temperature | 0℃ ~ 45℃ |
| Packet Buffer | 4.1Mbits | Storage Temperature | -40℃ ~70℃ |
| Jumbo Frame | 9KBytes | Operating Humidity | 10%~90% non-condensing |
| PoE Ports(RJ45) | 1-8 ports compliant with 802.3at/af | Storage humidity | 5%~90% non-condensing |
Software Specification
| Port properties | Support system LED、Port configuration、Port statistics Support MTU、DDM、VCT | Mirror | Support mirror、remote_mirror、ERSPAN |
| Management and maintenance | Support System information、user management Support SSH Support Telnet-Server、Telnet-Client、Telnet6-Server、Telnet6-Client Support ping、ping6 Support Tracert、tracert6 Support WEB management、SNMP、RMON Support Manage IP restrictions、Manage timeouts、Reboot | security features | Support Port isolation、storm-control、port-security、pppoeplus Support MUSER Support 802.1X Support arp anti-flood、arp anti-spoofing Support Prevent DOS attacks Support Discard-BPDU、shutdown-control Support dhcp anti-attack、ip-source-guard |
| VLAN | Support 802.1Q Support vlan-mac、vlan-protocol、vlan-subnet Support voice vlan Support QinQ Support vlan-swap、vlan-translate、GVRP | Forwarding control | Support Mac address management Support flow-control、BandWidth-Control、DST-Control、SRC-Control、ErrorPacket-Control |
| System reliability | Support LACP、RSTP、MSTP、STP、LBD、ERPS、EAPS、FLink、Mlink、PVST | L2 multicast | Support IGMP-Snooping、MLD-Snooping、GMRP Support Static multicast |
| DHCP | Support dhcp-snooping、DHCPv6-Snooping、dhcp-relay、dhcp-server Support option82、option60、Option18、Option37 | IPv4 | Support Ordinary VLAN interface、SuperVLAN interface Support Static routing |
| ARP | Support ARP、ND | IPv6 | Support Ordinary VLAN interface、SuperVLAN interface Support Static routing |
| OAM | Support EFM、CFM | Link detection | Support LLDP、UDLD |
| System alarm | Support syslog、cpu alarm、port alarm | Time management | Support Static state time、SNTP-Client |
