Complies with IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, and IEEE 802.3z standards
Supports IEEE802.3at/af PoE standards
Supports PoE power of up to 30W per PoE port, with a total PoE power output of up to 120W
Supports IEEE 802.3x flow control for full-duplex mode and backpressure for half-duplex mode
16K entry MAC address table with auto-learning and auto-aging
LED indicators for monitoring power, link, activity, and speed
Supports multiple modes: Flow control mode, Isolated mode, and Normal mode
Internal power supply

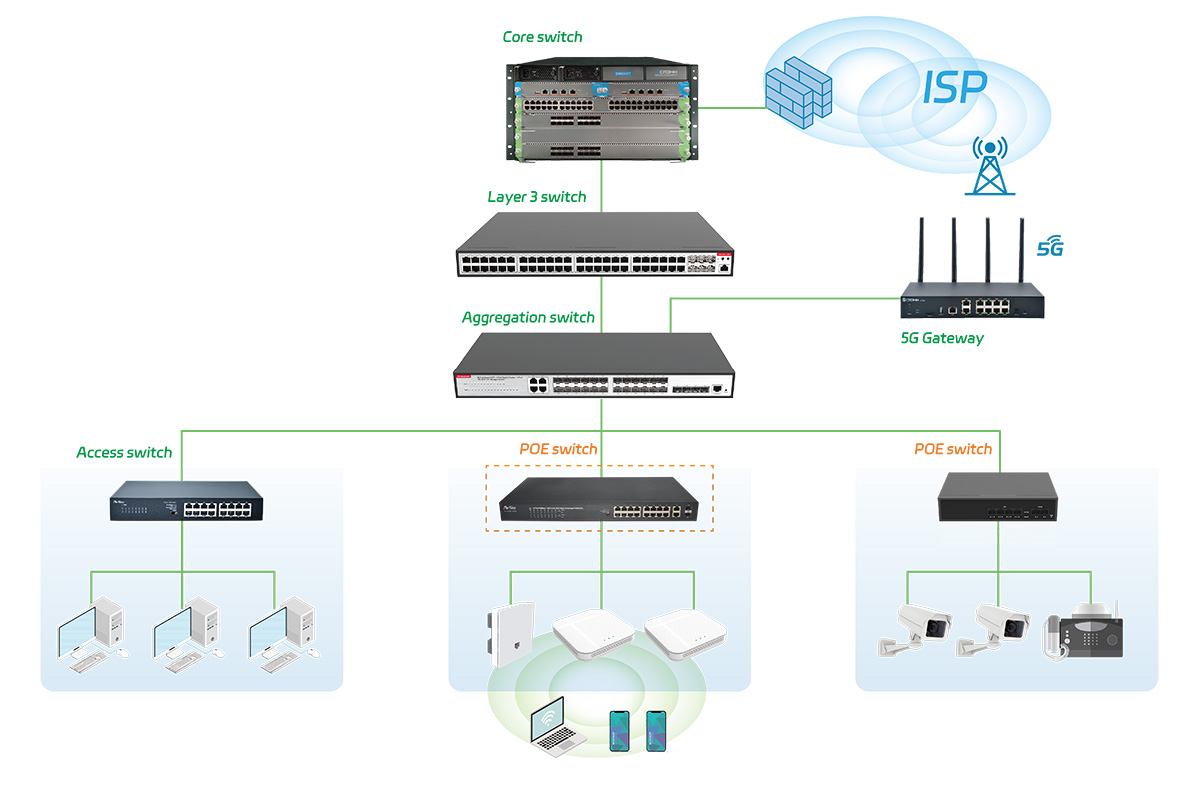

PE-S1100-16P2C is a 16-port 10/100Mbps + 2G Combo Multi-Mode Unmanaged PoE Switch that provides a seamless network connection. Based on Gigabit Ethernet Technology, it helps solve network bottlenecks that often occur as more advanced computer users and newer applications demand greater network resources. These PoE ports automatically detect and supply power to IEEE 802.3at-compliant Powered Devices (PD). In this setup, electrical power is transmitted alongside data through a single cable, allowing you to expand your network in areas where there are no power lines or outlets, and where you wish to install devices such as APs, IP cameras, or IP phones. The switch offers three modes: Normal mode, Isolated mode, and Flow control mode.
| Model | PE-S1100-16P2C | Switching Capacity | 7.2Gbps |
| Chipset | RTL8326B+RTL8208L+RTL8211FD+2*IP808AR | Packet Forwarding Rate | 5.35Mpps |
| Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3af、IEEE802.3at | Packet Buffer | 4Mbits |
| Interface | 16 x 10/100Mbps Auto-Negotiation ports 2 x Gigabit Combo ports | Jumbo Frame | 16KByte |
| Network Media (Cable) | 10Base-T: UTP category 3, 4, 5 cable (maximum 100m)EIA/TIA-568 100Ù STP (maximum 100m) 100Base-Tx: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ù STP (maximum 100m) 1000Base-T: UTP category 5e, 6 cable (maximum 100m) | Support multi-mode | Normal mode Isolated mode(1 to 16 can not communicate with each other, but can communicate with the uplink port (17,18ports) Flow control mode（close Flow control ) |
| Transfer Method | Store-and-Forward | PoE Ports(RJ45) | 16x PoE ports compliant with 802.3at/af |
| MAC Address Table | 16K | Power Pin Assignment | 1/2(+),3/6(-) |
| PoE Budget | 120W |
