8 10/100M PoE Port, 2 10/100M Uplink Ports
Built-in high-performance switching power supply for long-lasting stability
Store-and-Forward mode
The maximum power consumption per PoE port is 30W, with a total PoE output of up to 110W
Double upper-interface design

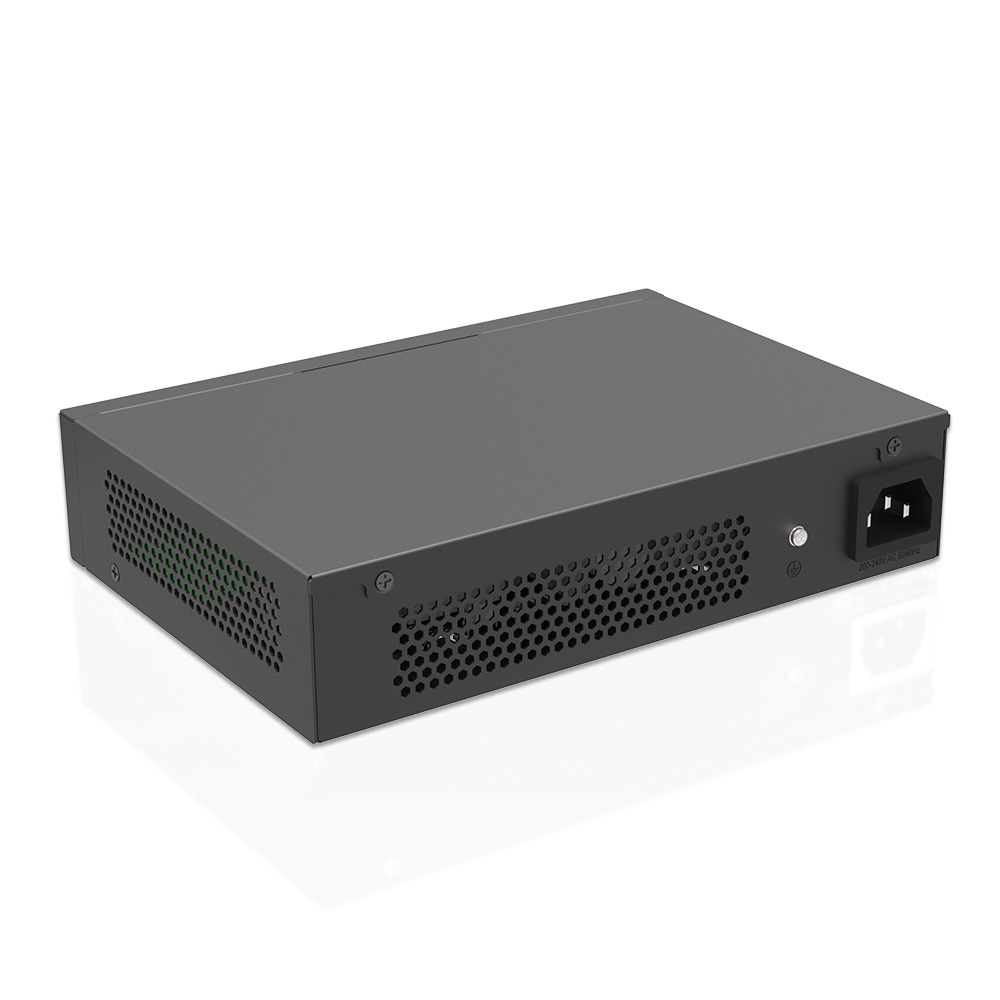

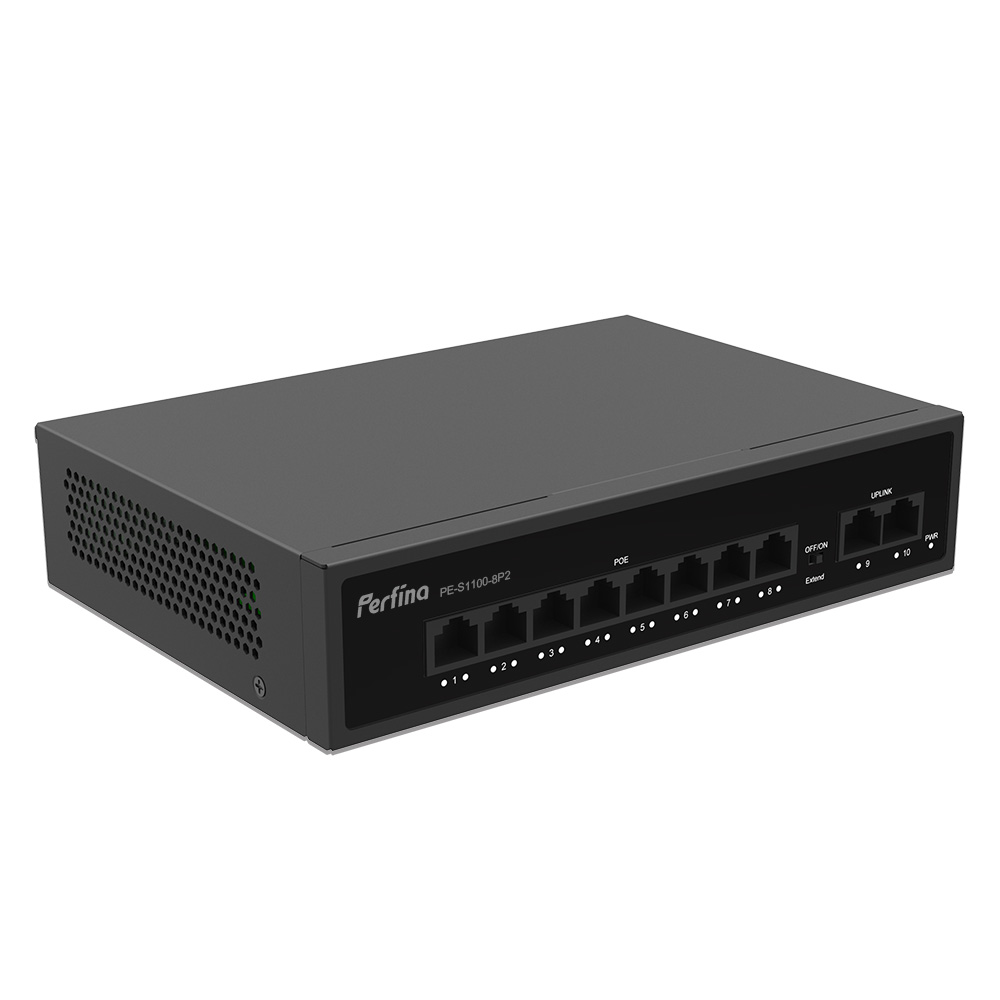

The PE-S1100-8P2 is a full 100-megabit unmanaged PoE Ethernet switch that provides 8 x 10/100Mbps adaptive PoE ports and 2 x 10/100Mbps uplink ports, all of which support wire-speed forwarding. The product is highly integrated, lightweight, and easy to operate, making it suitable for small to medium-sized office and home networks. This switch offers a simple, economical, and high-performance network solution. The front panel features easy-to-understand LED indicators, allowing you to quickly determine the working status of the switch and helping to diagnose network issues. All 8 RJ45 ports on the PE-S1100-8P2 have PoE power supply functionality, which automatically detects and identifies powered devices that comply with IEEE 802.3at and IEEE 802.3af standards, powering them through network cables. It is simple and convenient to use, plug-and-play with no configuration required and allows flexible expansion of home and office networks without the restriction of power line layout.
| Model | PE-S1100-8P2 | POE budget | 110W |
| Chipset | IP178G+IP175G+IP858B4 | LED | Per Device:Power(Green) Per Port:Link/Activity（Green） |
| Standards | IEEE 802.3i、IEEE 802.3u、IEEE 802.3x | Power supply | AC 200-240V/50-60Hz |
| Port | 10 x 10/100/1000Mbps Auto-Negotiation ports | Size（L×W×H） | 202*140*45 mm |
| Network Media | 10BASE-T: UTP category 3,4,5 cable (maximum 100m) 100BASE-Tx: UTP category 5,5e cable (maximum 100m) | surge protection | Port:±4KV；AC Port:L/N±1KV，L-L 0.5KV |
| Transfer Method | Store-and-Forward | ESD protection | touch:±4KV;Air:±8KV |
| MAC Address Table | 1K | Operating Temperature | 0℃ - 40℃ |
| Switching Capacity | 2Gbps | Storage Temperature | -40℃ - 70℃ |
| Jumbo frame | 1563Bytes | Operating Humidity | 10%~90% RH non-condensing |
| PoE Port | 1-8 Port | Storage humidity | 5%~90% RH non-condensing |
| Supply pin | 1/2(+),3/6(-) |
