8 adaptive 10/100Mbps RJ45 ports and 2 Gigabit uplink ports
Supports Auto-MDI/MDIX for automatic port crossover
Backplane bandwidth of 5.6Gbps
Utilizes a store-and-forward architecture
Supports automatic MAC address learning
Maximum PoE power per port: 30W, with a total PoE output of up to 120W
Multiple operating modes for flexible switching

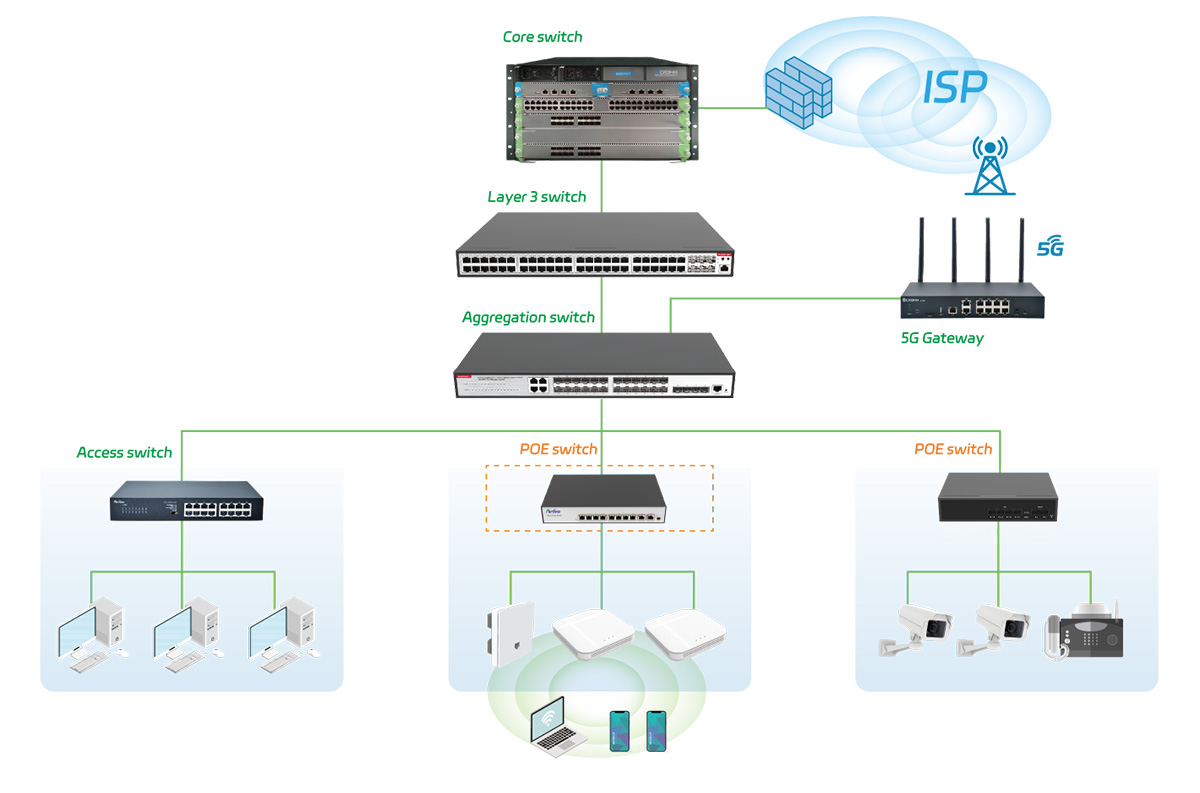

The PE-S1200-8P2G is a high-performance, multi-mode PoE switch with 8 adaptive 10/100Mbps RJ45 ports and 2 Gigabit uplink ports. It supports line-speed forwarding on all ports and is ideal for security monitoring and Wi-Fi hotspots. The front panel features clear LED indicators for easy status monitoring and troubleshooting. The switch offers PoE functionality, automatically detecting and powering compatible devices via Ethernet. With adjustable modes for normal operation, flow control off, and port isolation, it is perfect for expanding networks in small to medium-sized enterprises, smart communities, hotels, and office environments.
| Model | PE-S1100-8P2G | POE budget | 110W |
| Chipset | IP1811LR+2*IP1001C+IP858B4 | LED | Per Device:Power(Green) Per Port:Link/Activity（Green） |
| Standards | IEEE802.3，IEEE802.3u，IEEE802.3ab，IEEE802.3x，IEEE802.3az | Power supply | AC 200-240V/50-60Hz |
| Port | 8x 10/100Mbps Auto-Negotiation ports 2x 10/100Mbps Auto-Negotiation ports | Size（L×W×H） | 202*140*45 mm |
| Network Media | 10BASE-T: UTP category 3,4,5 cable (maximum 100m) 100BASE-Tx: UTP category 5,5e cable (maximum 100m) 1000BASE-Tx: UTP category 5,5e,6cable (maximum 100m) | Model | default:All ports can communicate with each othe |
| Transfer Method | Store-and-Forward | Vlan:Ports 1 to 8 cannot communicate with each other, but they can all communicate with the upstream Gigabit ports 9 and 10. | |
| MAC Address Table | 16K | Operating Temperature | 0℃ - 40℃ |
| Switching Capacity | 5.6Gbps | Storage Temperature | -40℃ - 70℃ |
| Jumbo frame | 4Mbit | Operating Humidity | 10%~90% RH non-condensing |
| PoE Port | 1-8 Port | Storage humidity | 5%~90% RH non-condensing |
