Comply with IEEE802.3i，IEEE802.3u，IEEE802.3ab，IEEE802.3x，IEEE802.3az
5*10/100/1000Mbps Auto-Negotiation Ethernet port,Support Auto-MDI/MDIX for each port
Supports IEEE802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
2K MAC address table with automatic learning and automatic aging
LED indicators for monitoring power, link and activity
External power supply and exquisite structural design for easy use
Lightweight management and is equipped with a simple and intuitive Web management interface

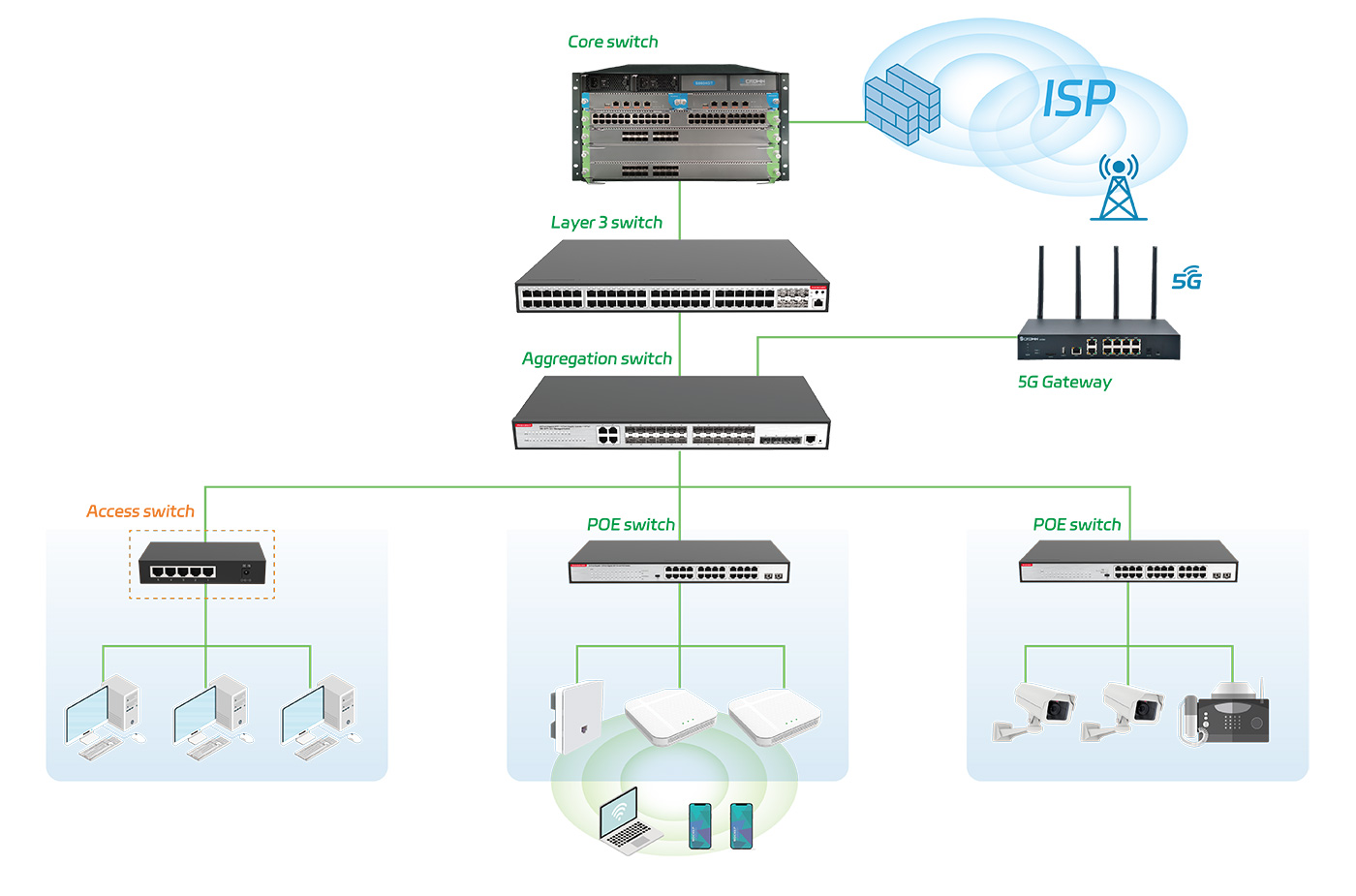

FR-S2905G is a full-gigabit smart Ethernet switch product. It provides 5 10/100/1000Mbps adaptive ports, and all ports support wire-speed forwarding. This product features a high-integration design, is lightweight, and easy to operate. It is suitable for small and medium-sized office and home networks. This switch provides you with a simple, economical, standard, and high-performance network application solution, and is an ideal choice for improving the performance of departments and workgroups. The front panel of this switch provides easy-to-understand LED indicators, allowing you to quickly judge the working status of the switch and help diagnose network failures. It has a built-in lightning protection unit and has good lightning protection characteristics, protecting it from damage caused by lightning overvoltage and induced overvoltage.
Hardware Specification
| Model | PE-S2200-5G | Packet Buffer | 1.5Mbits |
| Chipset | YT9215SL | Jumbo Frame | 9216Bytes |
| Standards | IEEE 802.3i、IEEE 802.3u、IEEE 802.3ab、IEEE 802.3x、IEEE 802.3az | LED indicators | Per Device Power：Green Per-Port Link/Act：1000M：Green 100M：Orange |
| Ports | 5*10/100/1000Mbps Auto-Negotiation ports(Auto MDI/MDIX) | Power Supply | AC 100-240V/50-60Hz DC 12V/1A power adapter |
| Network Media (Cable) | 10Base-T: UTP category 3,4,5 cable (maximum 100m) 100Base-Tx: UTP category 5,5e cable (maximum 100m) 1000Base-T:UTP category 5e,6 cable (maximum 100m) | Dimensions（L×W×H） | 140*76*28mm |
| Transfer Method | Store-and-Forward | Operating Temperature | 0℃ ~ 40℃ |
| MAC Address Table | 2K | Storage Temperature | -40℃ ~70℃ |
| Switching Capacity | 10Gbps | Operating Humidity | 10%~90% non-condensing |
| Packet Forwarding Rate | 7.44Mpps | Storage humidity | 5%~90% non-condensing |
Software Specification
| Mac | Support static configuration and dynamic learning of MAC addresses. Support viewing and clearing MAC addresses. The aging time of MAC addresses can be configured. Support limitation on the number of MAC addresses to be learned. | QoS | Support configuring ingress and egress rates of ports. Support DSCP. Support Domain configuration and port Domain mapping. Support port policy CIR/CBS/EIR/EBS. Support port traffic shaping PIR/PBS. Support queue traffic shaping CIR/CBS/PIR/PBS. |
| VLAN | Support 802.1Q. Support setting port VLAN type. | ACL | Support IP ACL&MAC ACL Support ACL matching sequence mode. |
| DHCP | Support DHCP Client | Reliability | Support global enabling of loopback-detection. |
| Port Configuration | Support configuring port rate, description, duplex mode, flow control, etc. Support real-time utilization statistics. Support port byte count statistics. | Security features | Support configuring/deleting black hole MAC. Support suppression function for multicast, broadcast and unknown unicast packets. Support port isolation. |
| Multicast | Support IGMP v1/v2. Support IGMP Snooping. Support multicast group policy and limitation on the number of multicast groups. | Management and maintenance | Support MQTT. Support management via browser-based WEB mode. Support system logs. Support configuration import and export. Support HTTP. Support LLDP. |
