Supports HSDPA/HSUPA/WCDMA/LTE FDD/LTE TDD/5G NR TDD full network compatibility
Supports 2.4G 5G WiFi hotspot sharing
Led srcreen,Displays Signal, Battery, Wi-Fi, and SMS status.
Long-lasting battery: 2100mAh or 3000mAh lithium-ion battery, 8 hours of continuous usage
Maximum LTE speed: Downlink 2000Mbps / Uplink 500Mbps

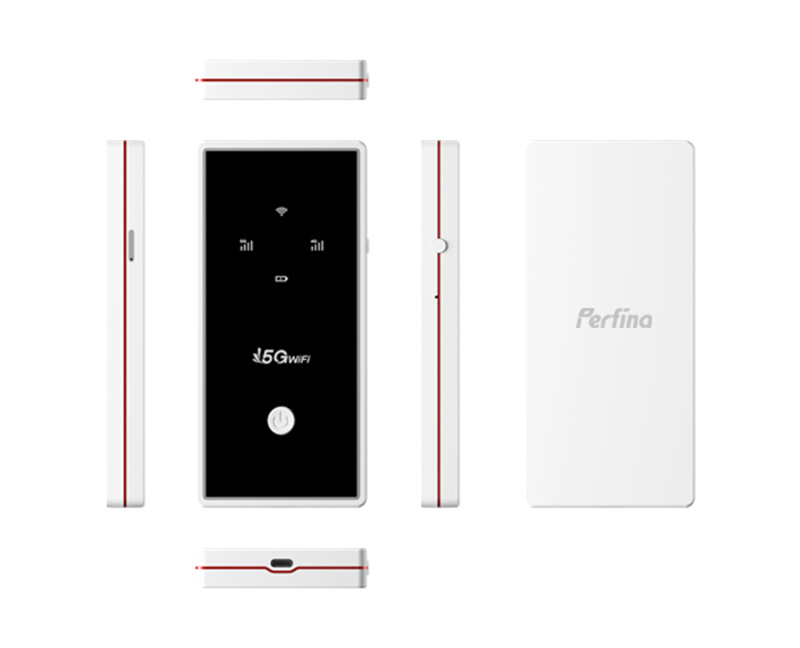

PE-MF501-5G features a built-in LED screen, supporting the display of Signal, Battery, Wi-Fi, and SMS status. It supports up to 8-hour battery life.
PE-MF501-5G supports 2.4GHz WiFi and HSDPA/HSUPA/WCDMA/LTE FDD/LTE TDD/5G NR TDD cellular communication, 5G NR TDD delivering maximum uplink/downlink speeds of 500Mbps/2000Mbps. An integrated solution tailored for scenarios requiring 5G high-speed data transmission, such as premium business travel, digital content creation, and emergency communication.
| CPU | UDX710,dual core A55 1.35G | IPV4/IPV6 | IPV4，IPv6 |
| OS | Linux | Route | support |
| RAM | 4Gb,SIP LPDDR4X | SSID change | support |
| ROM | 2Gb,external NAND | Statics | support |
| 3GPP | R8,R9...,R15 | Networks selection | support |
| Data Speed | HSDPA,up to 42.2Mbps（DL）（Category 24） HSUPA,up to11Mbps（UL）（Category 7） WCDMA,up to384Kbps（DL）/up to384Kbps（UL） LTE FDD,up to 300Mbps（DL）/up to50Mbps LTE TDD,up to260Mbps（DL）/up to30Mbps 5G NR TDD,up to2Gbps（DL）/up to 500Mbps（UL） | SW upgrade | Support FOTA and local upgrade |
| LTE Antennas | 1T2R | Esim | Optiona |
| 5G Antenna | 1T4R | APN | support |
| WCDMA/HSPA | B1/B5/B8 | Button | Power、WPS、Rese |
| TDD-LTE | B34/38/39/40/41 | US | USB2.0，TYPE C |
| FDD-LTE | B1/B3/B5/B7/B8/B20/B28 | SIM Slot | 1, Nano SI |
| CA | B1+B3 B1+B1 B3+B3 B39+B41 B39+B39 B40+B40 B41+B41 | Battery | 4500mAh(capacity |
| 5G N | FDD:N1/N3/N28 TDD:N41/N77/N78 (n1/3/5/7/8/20/28/41/78 optional) | Power input | Type-C 5V/2A |
| Power | Class 3 (24 dBm +1/-3 dB) ，WCDMA Class 3 (23 dBm ±2 dB)，LTE Class 3 (23 dBm ±2 dB)，5G NR | Indicators | Power lights（3 colors） Green >60%; Yellow 20-60%;Red<20%; Green flashing for charging 4G lights（2 colors） Green—Red—Red flashing-Green flashing 5G lights（2 colors） Green—Red—Red flashing-Green flashing WIFI（2 color）Green/Blue;Green flashing for WPS |
| WiFi chipset | UMW265 | ESD | 6k to 10K |
| WIFI protocals | 2.4GHz, 5.0GHz，802.11 a/b/g/n/ac | Surge test | VBAT 200V ,VBUS 300V |
| User | up to 16 | Working temprature | -20 to +60℃ |
| WiFi antennas | 2×2 | Operation tempratur | -30 to +70℃ |
| Powe | 11ac:867/780/650…65Mbps (Auto Rate Sensing) 11g:54/48/36/24/18/12/9/6 Mbps (Auto Rate Sensing) 11b:11/5.5/2/1 Mbps (Auto Rate Sensing) 11n:300 Mbps /…/6.5Mbps (Auto Rate Sensing) | Size | 150×70×17 cm |
| Sensitivit | MCS9: -63dBm@10% PER MCS7: -68dBm@10% PER 54M：-70dBm@10% PER 11M：-83dBm@8% PER 6M：-88dBm@10% PER 1M：-90dBm@8% PER | ||
| Data Speed | 11ac:867/780/650…65Mbps (Auto Rate Sensing) 11g:54/48/36/24/18/12/9/6 Mbps (Auto Rate Sensing) 11b:11/5.5/2/1 Mbps (Auto Rate Sensing) 11n:300 Mbps /…/6.5Mbps (Auto Rate Sensing) |
