Supports LTE/WCDMA full network compatibility
Supports 2.4GHz WiFi hotspot sharing
Interactive color screen: TFT full-color touch screen with real-time network status monitoring
Long-lasting battery: 2100mAh or 3000mAh lithium-ion battery, 8 hours of continuous usage
Maximum LTE speed: Downlink 150Mbps / Uplink 50Mbps

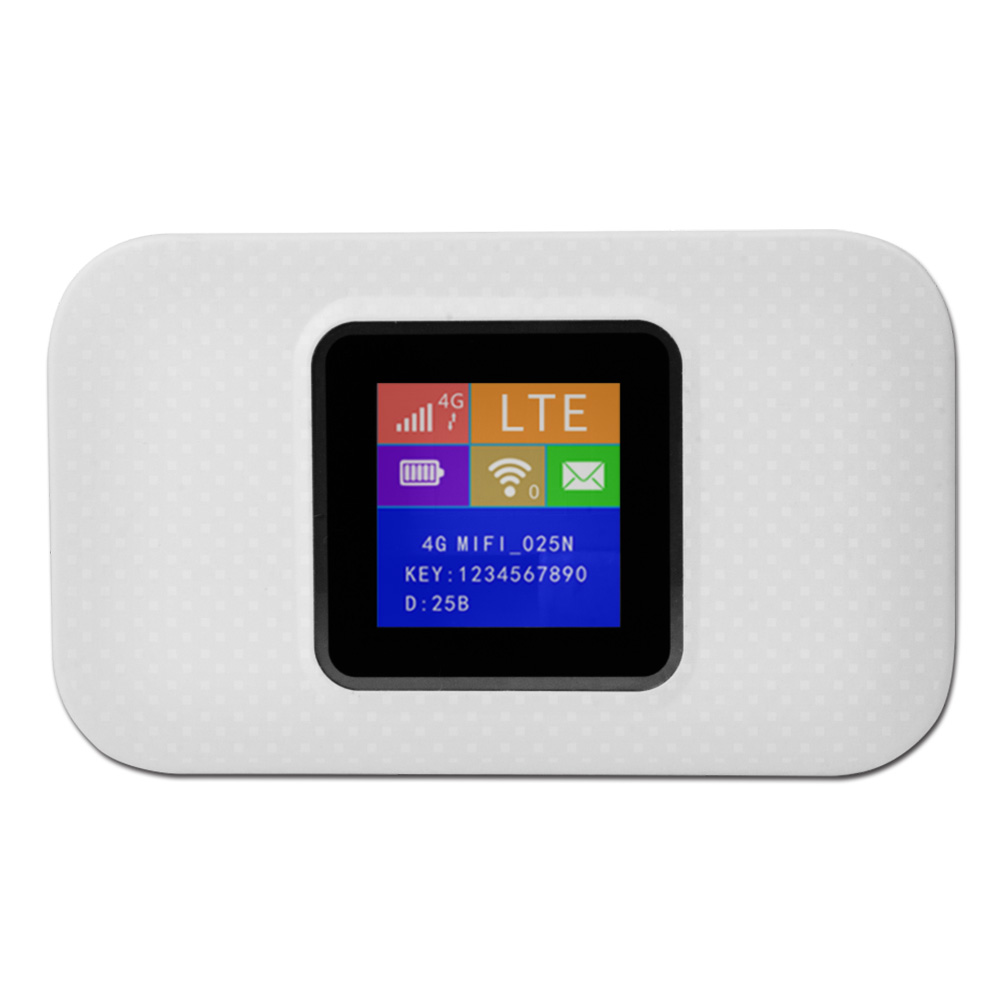

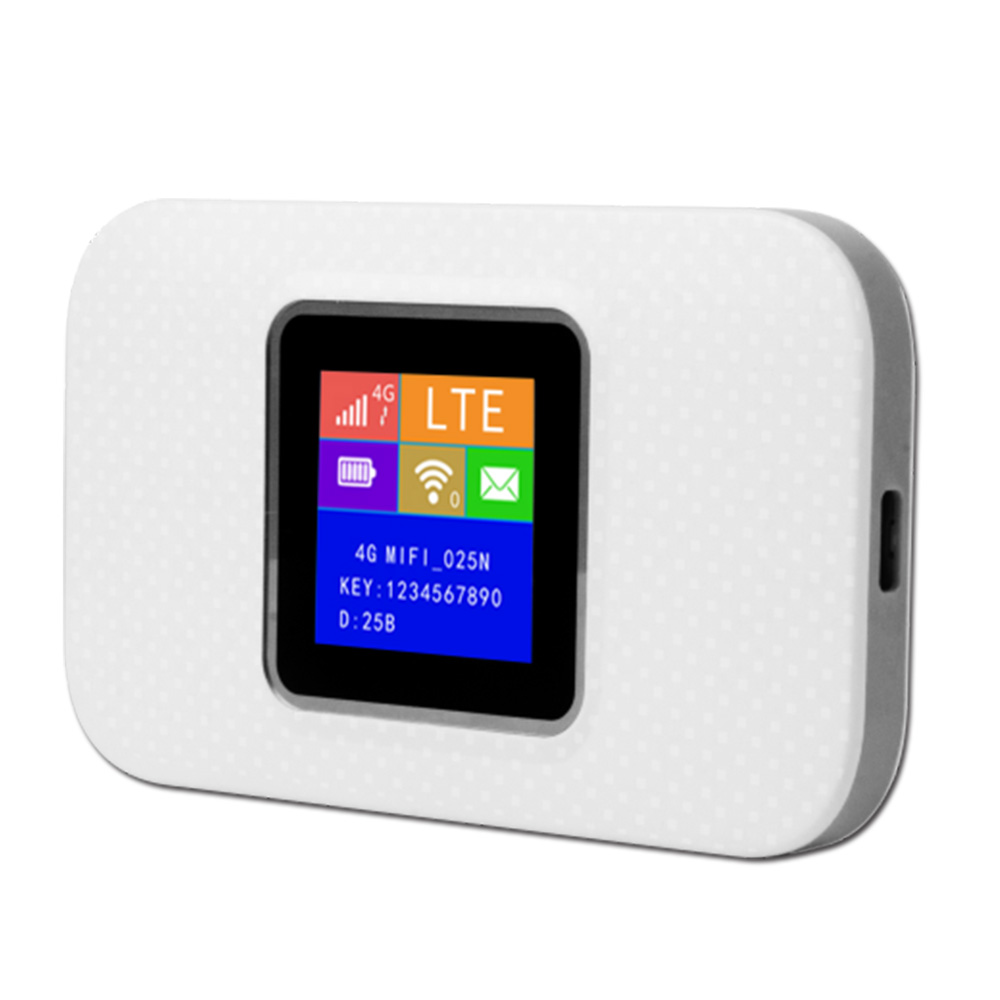

PE-MF101-4G Full-Color Touchscreen 4G Mobile Hotspot
Integrated with a TFT touchscreen and up to 8-hour battery life, the PE-MF101-4G supports 2.4GHz WiFi and LTE/WCDMA cellular communication, delivering maximum uplink/downlink speeds of 50Mbps/150Mbps. Designed as a solution for premium business travel, digital content creation, and emergency communication scenarios.
| Chipset | ASR1803sc | Quick Setup | support |
| Memory | 64Mb Norflash SDR 256Mbit | Dashboard（Device Status） | support |
LTE TDD/FDD | 3GPP R9 Cat. 4, Downlink/Uplink up to 150Mbps/50Mbps | Internet Settings | support |
WCDMA | 3GPP R7 Downlink/Uplink up to 21Mbps/5.76Mbps | Home Network Settings | support |
LTE/WCDMA | Power Class 3 | Wireless Settings | support |
SIM/USIM Card Slot | Standard 6 PIN SIM card interface, compaliant with 3GPP 31.101 and 31.102 | Router Settings | support |
Power Interface | Type-C USB | System Settings | support |
| LTE/WCDMA | Internal | SMS | support |
| WiFi Antenna | Internal | Firmware upgrade | support |
| Power Button | Yes | Chinese / English | Default English,Support Multi-Language Customization |
Reset Button | Yes | Weight | 89g(Including battery and package） |

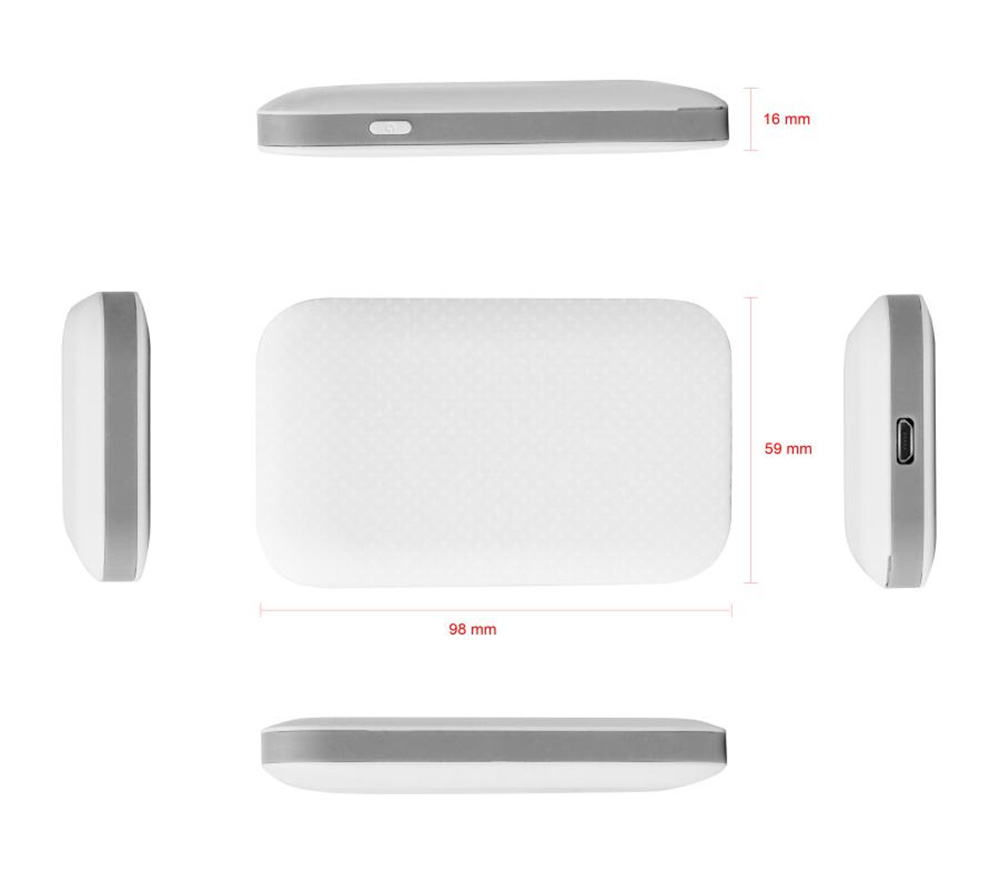

| LCD Display Screen | 1.46 inch 128*128 TFT | Dimension | 98mm*59mm*16mm |
| Sharing | Up to 16 devices | Microsoft OS | Windows2000/XP/Vista/7/8/10 |
SSID Broadcas | Yes | Mac OS | Mac OS X10.6 and above version |
| WiFi Security | WPA2-PSK，WPA-WPA2 Mixed，WEP | Android | Android 4.2 or Later |
| WiFi Standard | 802.11b/g/n/ax | Gift Box Customization | Supported |
| WiFi Band | 2.4GHz | UI Customization | Supported |

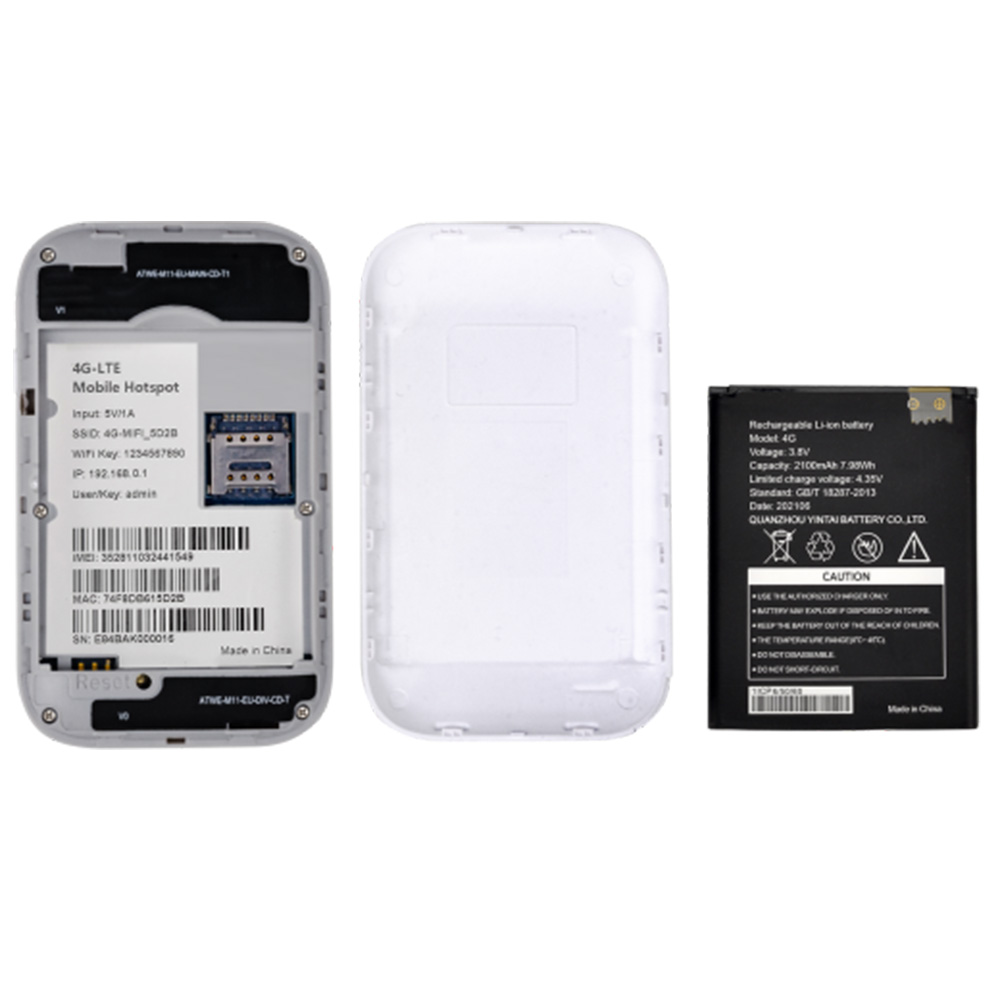

| Capability | 2100mAh | Working Temperature | -10℃ to 45℃ |
| Working Time | About 8 hours | Storage Temperature | -30℃ to 80℃ |
| Charging Time | About 3 hours | ||
| Input/Output | 5V/1000mA |
